RuggON PM-521 - Volledig Robuuste Tablet
RUGGON PM521 VOLLEDIG ROBUUSTE TABLET PC
● Ultra helder 1000 NITs Zonlicht Afleesbaar Display
● 10.1" Full HD (1920x1200) Display
● Windows 10 IoT of Windows 10 Professional
● Intel® Atom™ processor E3827 1.75 GHz
● IP65, MIL-STD-810G, 150 cm valbestendig
● GNSS/GPS, Wi-Fi, Bluetooth en optioneel met geïntegreerde 4G/LTE
● USB 3.0, LAN, RS232, HDMI
● Capacitief aanraakscherm:
- Multi Touch ondersteunt handschoenaanraking
- Ongevoelig voor water/regendruppels en handpalm aanraking
● Optioneel Janus USB Ignition Key, Phoenix SecureWipe
● Hot swappable batterij design
● Uitbreidingsmogelijkheden voor 1D/2D Barcode lezer en NFC
● Dual pass-through connector voor WLAN, GNSS, WWAN
Rextorm PM-521 | ![]() ![]() |

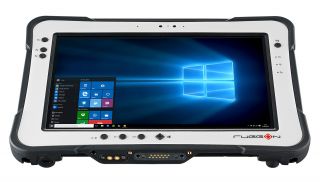

10.1” Fully Rugged Windows TabletPerfectly balanced performance, yet competitive pricing. The PM-521 offers an unparalleled operating experience and cost-effective option. |
![]() |
![]() |

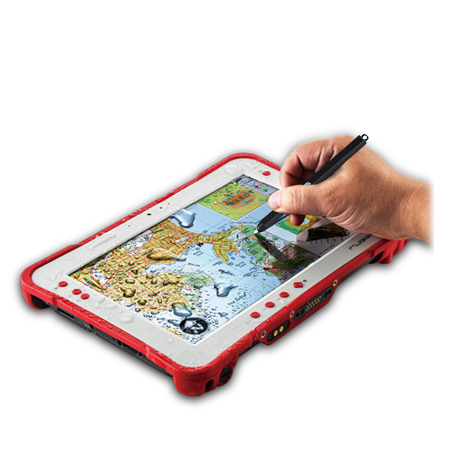

Beyond the TouchCombined with advanced touch technology, Rextorm can ignore unintended touches including palm, water mist and rain drops, while ensuring correct data and command input. Paired with our 2mm hard tip of stylus, the PM-521 ensures extra accurate touchscreen interactions. Incorporated Gorilla Glass3 and glove touch function into tablet to resist external damage and fulfill field needs, all-new PM-521 is truly dedicated device for mobile workers. |

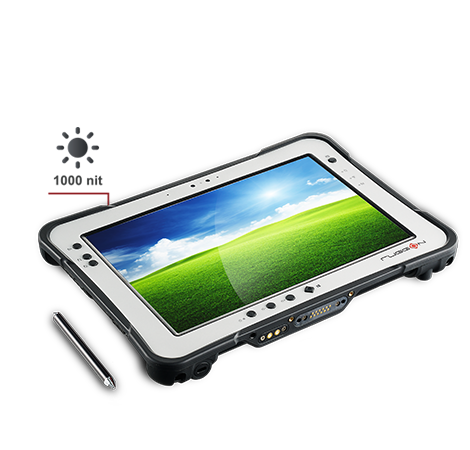

Best Ever Viewing ExperienceRextorm, the first-to-market 10.1” fully-rugged tablet with 1000 nits brightness sunlight readable display, is combined with high-resolution WUXGA (1920x1200), optical bonding technology and Gorilla Glass to enhance viewability in direct sunlight, while increasing viewing performance with attention to detail. |
![]() |
![]() |

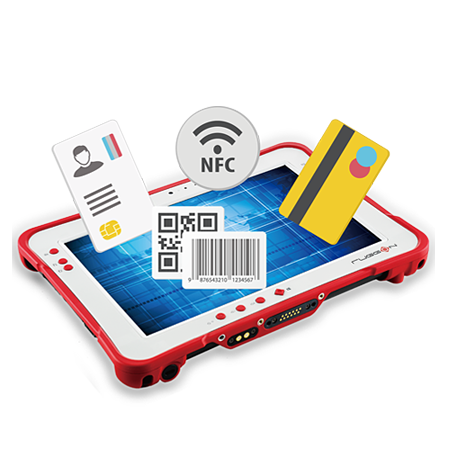

Ready for Field WorkThe Rextorm PM-521 comes with numerous I/O ports that provide exceptional connectivity options, including Ethernet (RJ-45), RS-232. And the extendible design of data collection and programmable function buttons can enhance functionality and product capability. |
A Perfect Link@ Anytime, AnywhereEquipped with the latest and complete communication technology, mobile workers can experience precise positioning, faster processing, broader coverage and more stable data transfer even around buildings or trees. For in-vehicle usage, seamless connection is also uninterrupted through switchable dual pass-through connector. |
![]() |
![]() |

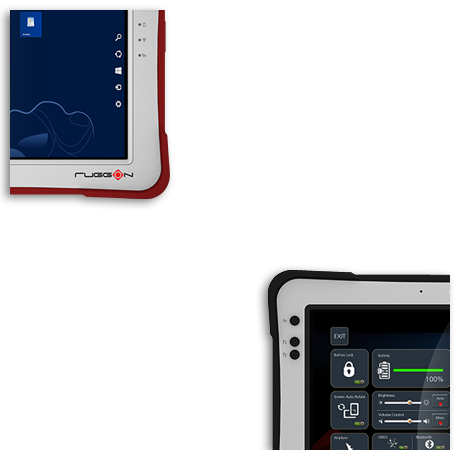

Exclusive OS OptionThe more operating systems you need, the more tablets you have to prepare. Now PM-521 offer exclusive option of operating system on the same platform, it facilitates deployment of various applications in one unit. |

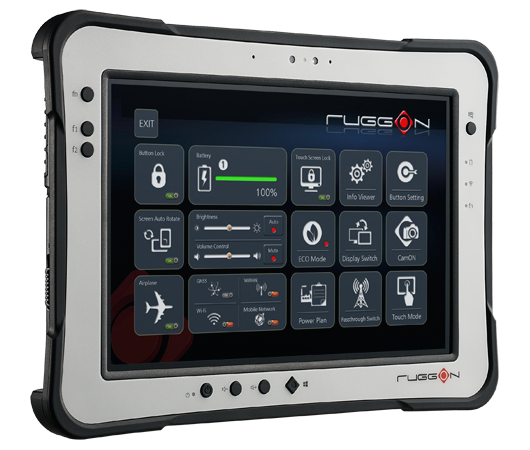

Long-lasting PowerA hot swappable battery design means battery can be switched in and out without ever turning off the device. For extended field usage, a high capacity battery is available that provides up to 12 hours of battery life. For extreme power savings, ECO mode enabled by RuggON’s DashON app can extend battery life even further. *The listed battery life is based on MobileMark 2012® media mode testing. |
![]() |
|
Enhanced Security PerimeterBeside the encrypted SSD with FIPS 140-2 certification, we also offer Janus USB Ignition Key and a customized button to quickly erase SSD data during emergencies. |
Operating temperature : -20° C to +60° C
Optional 256 GB
10-point capacitive touch supports glove touch, water rejection, 2mm hard tip stylus
Gorilla Glass3;
Optional built-in NFC reader (Windows only)
Optional NFC + Smart Card reader (CAC) 2-in-1 module
- 10-point capacitive touch supports glove touch, water rejection, )
Optional built-in NFC reader (Windows only)
Optional NFC + Smart Card reader (CAC) 2-in-1 module
5M pixels auto focus camera with LED flash x 1
USB 3.0 type A x 1
Gigabit Ethernet (RJ45 ) x 1, RS-232 x 1
Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1
Headphone / microphone combo x 1
Dual RF pass-through connector for WLAN, GNSS, WWAN
12-pin docking connector x 1
DC-in x 1
802.11 a/b/g/n/ac
Bluetooth V4.0 + EDR
GNSS (GPS / GLONASS / BeiDou)
Optional 4G LTE
Cable lock slot
Optional Janus US B Ignition Key, Phoenix SecureWipe
Optional RFID or smart card reader
Standard : 4500 mAh, hot swappable; Battery operation* : 6 ~ 6.5 hours
Extended (option) : 9000 mAh, hot swappable; battery operation* : 12 ~ 13 hours
* The listed battery life is based on MobileMark 2012® media mode testing.
Storage temp: -30°C to 70°C
Humidity: 5% to 95% RH, non-condensing
