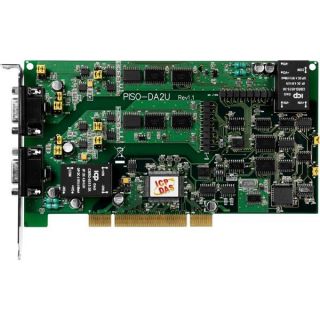

ICPDAS PISO-DA2U
Levertijd:
2~7 dagen
SKU
PISO-DA2U
Universal PCI, 2-Channel Isolated Analog Output Board
● Supports both +5 V and +3.3 V PCI bus
● Supports +5 V PCI bus
● Two independent 12-bit analog output channels
● 3750 VDC bus and channels isolation protection
● 3000 VDC power isolation protection
● Software calibration
● Unipolar or bipolar output available from each converter
● Two pacer timer interrupt source
● Double-buffered D/A latch
● The calibration data is fully stored in EEPROM
The PISO-DA2U has 2 analog output channels with high-voltage isolation protection and provides universal PCI interface (3.3 V/5 V). The PISO-DA2U is fully compatible with the PISO-DA2, and users can replace the PISO-DA2 by the PISO-DA2U directly without software/driver modification.
The built-in high-quality isolation components on the PISO-DA2U make it featuring 3750 VDC bus-typed and channel-channel isolation, and offer durable abilities. For the PISO-DA2U, the voltage output ranges are ±10 V, ±5 V, 0 ~ +10 V and 0 ~ +5 V and the current output ranges are 0 ~ 20 mA and 4 ~ 20 mA. In addition, the PISO-DA2U also features the following advantages by ICP DAS's innovation:
1. Accurate and easy-to-use calibration:
ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration data can be saved in the EEPROM for long-term use.
2. Channel to channel configuration:
Each channel can be individually configured as voltage or current output with different output range.
3. Card ID:
ICP DAS provides the card ID function for PISO-DA2U. Users can set a card ID for each card so that when more than two boards are used in a computer at the same moment, users can still instantly recognize them one by one.
PISO-DA2U supports a wide range of operating systems like Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP 32-Bit. Moreover, ICP DAS provides all the DLL and Active X for users, and sample programs covering from Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView are also provided for intuitive and fast learning!
SOFTWARE:
● Toolkit for DOS
● Toolkit for Windows 95/98
● Toolkit for Windows NT
● Toolkit for Windows 2000/XP
● LabVIEW toolkit for Windows
● Driver for LINUX
Meer informatie
Art.nr.
PISO-DA2U
Fabrikant
ICPDAS
Analog Output
| Isolation Voltage | 3750 V (Bus Type, CH-to-CH) | ||
| Channels | 2 | ||
| Resolution | 12-bit | ||
| Accuracy | 0.015% of FSR ±1/2 LSB @ 25 °C, ±10 V | ||
| Output Range |
|
||
| Output Driving | ±5 mA | ||
| Slew Rate | 0.3 V/μs | ||
| Output Impedance | 0.1 Ω max. | ||
| Operating Mode | Software |
Algemeen
| Bus Type | 3.3 V / 5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Card ID | Yes (4-bit) |
| I/O Connector | Male DB9 x2 |
| Dimensions (l x w x d) | 189 x 98 x 22mm |
| Power Consumption | 1350 mA @ +5 V |
| Operating Temperature | 0 °C ~ 60 °C |
| Storage Temperature | -20 °C ~ 70 °C |
| Humidity | 5 ~ 85% RH, non-condensing |
