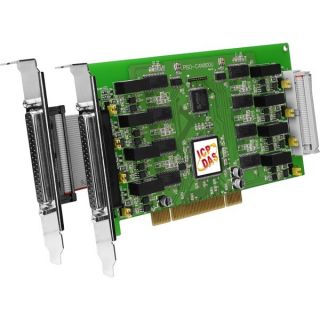

ICPDAS PISO-CAN800U-D

Levertijd:

2~7 dagen

SKU

PISO-CAN800U-D

8-Port Isolated Protection Universal PCI CAN Card

● One CAN bus communication port
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● 2500 Vrms photo couple isolation on the CAN bus
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play

Brochure EN

Details

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN800U-D can represent an economic solution of an active CAN board. It has eight independent CAN bus communication ports and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN800U-D uses the new CAN controller Phillips SJA1000T and transceiver TJA1042, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.

SPECIFICATIES

Meer informatie

Art.nr.

PISO-CAN800U-D

Fabrikant

ICPDAS

Bus Interface

Type	Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play

CAN Interface

Controller	NXP SJA1000T with 16 MHz clock
Transceiver	NXP TJA1042
Channel number	8
Connector	Female DB-37
Baud Rate (bps)	10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Terminator Resistor	Jumper for 120 Ω terminator resistor
