ICPDAS ISO-P32C32
32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Open Collector Output
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output/Open-collector
● DC/DC converter build-in
● 3000 Vrms isolation voltage
● Interrupt handling
● Interrupt source: channel 0 and channel 16
The ISO-P32C32 has 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel use a photo-coupler input which allows either internal isolated power supply or external power selected by jumper.
Each digital output offers a darlington transistor and integral suppression diode for inductive load. Isolated input channels 0 ~ 15 are designed into group A and channels 16 ~ 31 are designed into group B. Isolated output channels are designed into group C and group D. The power supply of the input port may use the external power or the power from the PC side using DC/DC converter. The power supply of the output port should use the external power.

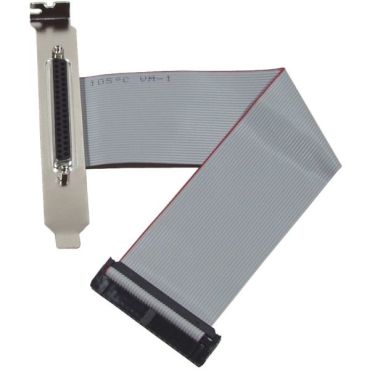

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The ISO-P32C32 has one 37-pin D-Sub Connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector . Each D-Sub connector contains 16 input channels and 16 output channels.
SOFTWARE:
● DOS sample program(with source codes)
● DLL and OCX SDK for Windows 98/NT/2000
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux and DasyLab
APPLICATIONS:
● Factory Automation
● Product Test
● Laboratory Automation
Isolation Voltage |
|
||
Channels | 32 | ||
Compatibility | Photo coupler isolated | ||
Input Voltage |
|
||
Response Speed | 4 kHz (Typical) |
Isolation Voltage | 3750 Vrms (Using external power) | ||
Channels | 32 | ||
Compatibility | Sink, Open Collector | ||
External Voltage | 5 ~ 30 VDC (max.) | ||
Output Capability |
|
||
Response Speed | 4 kHz (Typical) |
Bus Type | ISA | ||
Data Bus | 8-bit | ||
I/O Connector |
|
||
Dimensions (l x w x d) | 163 x 115 x 22mm | ||
Power Consumption | 600 mA @ +5 V | ||
Operating Temperature | 0 ~ 60 °C | ||
Storage Temperature | -20 ~ 70 °C | ||
Humidity | 5 ~ 85% RH, non-condensing |
