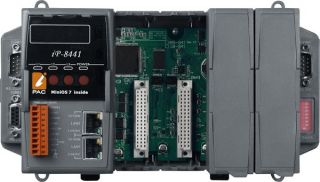

ICPDAS PAC iP-8441

Levertijd:
2~7 dagen
SKU
iP-8441

Standard iPAC-8000 with 4 I/O Slots

SOFTWARE FEATURES:

● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library

HARDWARE FEATURES:

● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C

Brochure EN

The ICPDAS 8000 Series PAC iP-8441 is the compact size PAC (Programmable Automation Controller). It supports various connectivity including Dual 10/100 Base-TX Ethernet ports, one RS-232/485 port, one RS-485 port and two RS-232 ports, and 4/8 slots for high performance Parallel-type I/O modules (High profile I-8K series) and Serial-type I/O modules (High profile I-87K series), etc.

The ICPDAS 8000 Series PAC iP-8441 is designed for industrial monitoring, measurement and controlling. It has redundant power inputs with 1 kV isolation from noise and surges, and a wide range of operating temperature (-25 °C ~ +75 °C). It can work in the harsh and rough environment.

Meer informatie
Art.nr.
iP-8441
Fabrikant
ICPDAS
Software
OS MiniOS7 (DOS-like embedded operating system)
Program Download Interface RS-232 (COM1)
Programming Language C language
Compilers to Create.exe Files
TC++ 1.01 (Freeware)
TC 2.01 (Freeware)
BC++ 3.1 ~ 5.2x
MSC 6.0
MSVC++ (before v1.5.2.)
Systeem
CPU 80186 or compatible (16-bit and 80MHz)
SRAM 768 KB
Flash 512 KB (100,000 erase/write cycles) with Flash protection switch
Expansion Flash Memory microSD socket (can support 1/2 GB microSD)
64 MB NAND Flash Disk N/A
Dual Battery Backup SRAM 512 KB (for 5 years data rretention)
EEPROM
16 KB
Data Retention: 40 years; 1.000.000 erase/write cycles
NVRAM 31 bytes (battery backup, data valid up to 5 year)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes
Watchdog Timers Yes (0.8 second)
NET ID 8-pin DIP switch to assign NET ID as 1 ~ 255
Communication Ports
Ethernet
RJ-45 x 2, 10/100 Base-TX
(Auto negotiating, Auto MDI/MDI-X, LED indicators)
COM0 Internal communication with the high profile I-87K series modules in slots
COM2
RS-485 D2+, D2-; self-tuner ASIC inside
Isolation 3000 VDC
COM3 RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM4 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
SMMI
5 Digit LED Display
3 Programmable LED Indicators
4 Push Buttons
Buzzer Yes
I/O Expansion Slots
Slot Number
4
(For High Profile I-8K and I-87K Modules Only)
Hot Swap For High Profile I-87K Modules Only
Data Bus 8/16 bits
Address Bus Range 2 K for each slot
Power
Input Range +10 ~ +30 VDC
Isolation 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 0.85 A, 5 V supply to CPU and backplane,
5.51 A, 5 V supply to I/O expansion slots,
30 W in total
Consumption 6.7 W (0.28 A @ 24 VDC)
Mechanical
Dimensions (w x l x h) 231 x 132 x 111mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH (non-condensing)
