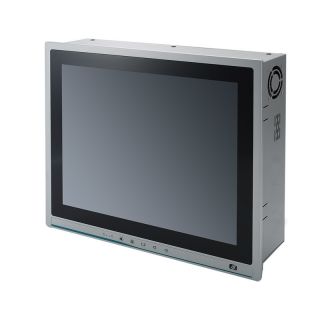

Axiomtek Panel PC P1157E-500
15" XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor and 1 PCI/PCIe Slot
● 15" XGA TFT LCD display
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
● Intel® H110 chipset
● Less screw design for easy installation
● 4 USB 3.0, 2 USB 2.0 and 4 COM ports
● One PCIe x4 or one PCIe slot
● Built-in speakers and optional Wi-Fi 802.11 b/g/n module
● Robust IP65 compliant aluminum front bezel
● 5 OSD keys in front panel
The P1157E-500 is a multimedia 15" touch panel PC for kiosk application. It has a fashionable mechanism design and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia application, the P1157E-500 is powered by a high performance LGA1151 socket 7th/6th generation Intel®Core™ processor with the Intel® H110 Express chipset.
It features four COM ports, two Gigabit Ethernet and up to 32GB memory of dual-channel DDR4-2133 that delivers high computing capability for high performance-demanding applications. The industrial touch panel PC is most suitable for kiosk, factory and automation.
Expandable for 1 PCIe or 1 PCI
The P1157E-500 has 1 PCIe x4 or 1 PCI slot for expansion purpose. User can easily plug in standard half-size PCI or PCIe card based on any application needs.
Speaker and WLAN Antenna Supported
The P1157E-500 features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.
Friendly Less Screw Design
The P1157E-500 is designed with easy of maintenance in mind. There are only four screws on the back chassis, so that technicians can quickly remove the system’s back
cover with minimum effort.
| Display Type | 15" XGA TFT LCD |
| Brightness (cd/m2) | 250 nits |
| Resolution | 1024 x 768 pixels |
| Viewing Angle (H/V) | 160°/140° |
| CPU | LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor |
| Chipset | Intel® H110 |
| System Memory | 2 x 288-pin DDR4-2133 Long-DIMM, up to 32GB |
1 x RS-232/422/485 (COM 1)
1 x HDMI
1 x VGA
1 x DisplayPort
4 x USB 3.0 (back)
2 x USB 2.0 (front)
2 x 10/100/1000 Mbps Ethernet (Intel® i219LM/i211AT)
1 x Audio (Mic-in/Line-out)
1 x Remote Power Switch
Light transmission 79%
1 million activations (typical) at a single point
Power Consumption: 97.6 W
Relative humidity: 10 ~ 90% @40°C, non-considering
Operating vibration: 1.0G, 5-500Hz, random
Windows® 10 IoT Enterprise
