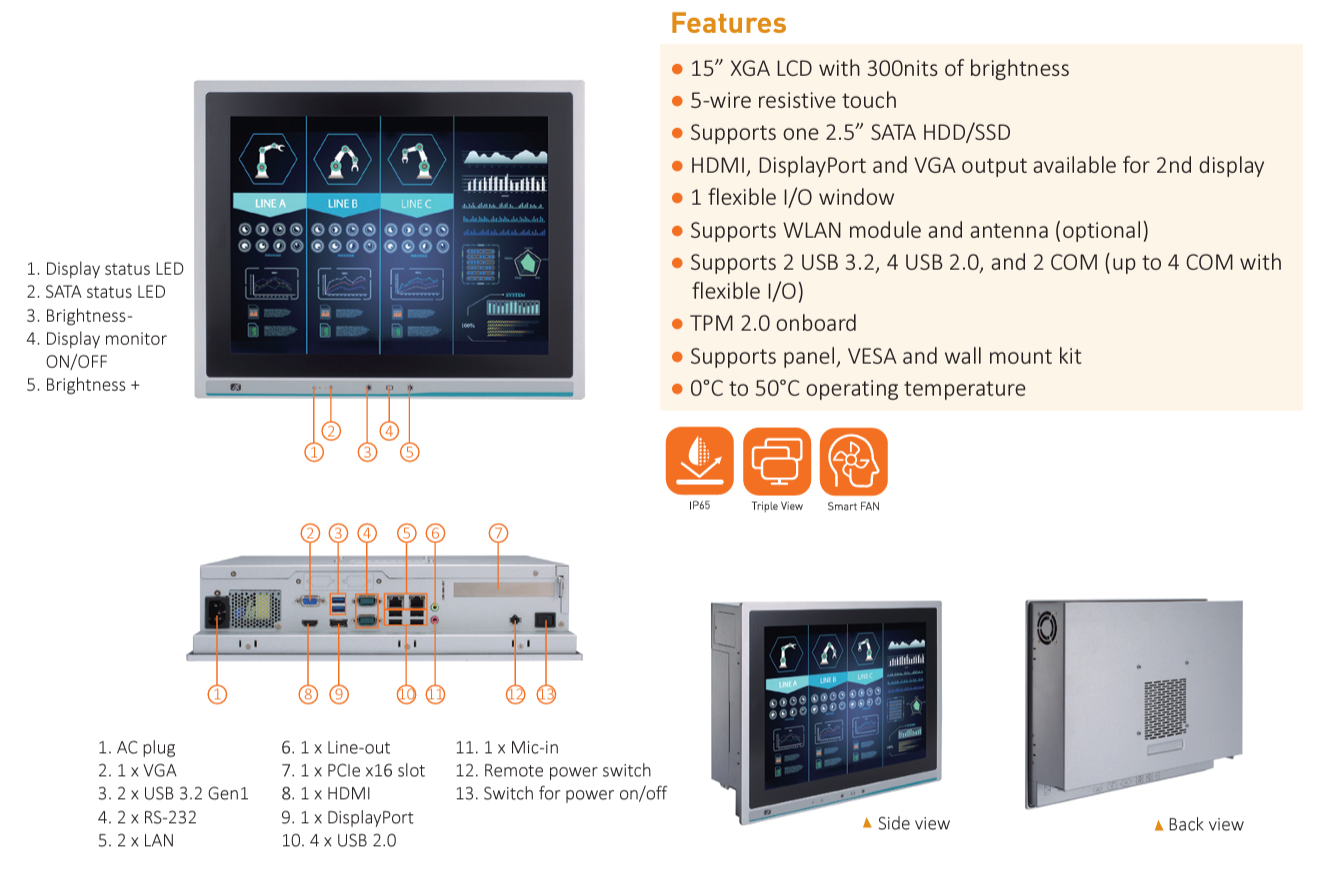

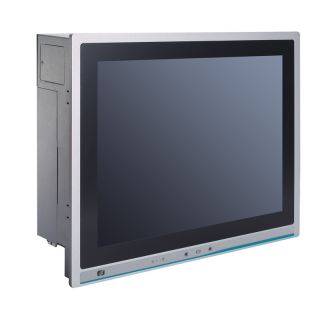

Axiomtek P115-ADL-TRA - 15" XGA TFT Expandable Industrial Touch Panel Computer
● 15” XGA LCD with 300nits of brightness
● 5-wire resistive touch
● Supports one 2.5” SATA HDD/SSD
● HDMI, DisplayPort and VGA output available for 2nd display
● 1 flexible I/O window
● Supports WLAN module and antenna (optional)
● TPM 2.0 onboard
● Supports 2 USB 3.2, 4 USB 2.0, and 2 COM (up to 4 COM with flexible I/O)
● Supports panel, VESA and wall mount kit
● 0°C to 50°C operating temperature
The P115-ADL-TRA is a 15-inch touch panel PC designed for kiosk applications. Its sleek design and robust industrial-grade front bezel shield against chemical corrosion. Equipped with the powerful LGA1700 socket 12th gen Intel® Core™ i7/i5/i3, Celeron® or Pentium® processor, alongside the Intel® H610 chipset, it meets the demands of multimedia applications.
With up to four COM ports, one 2.5GbE LAN, one GbE LAN, and support for up to 64GB of dual-channel DDR4-3200/2666/2400 memory, it delivers high computing capability for demanding applications.
This industrial touch panel PC is ideal for retail, factory, and automation environments.
Expandable with PCIe x16 Slot
The P115-ADL-TRA is equipped with a PCIe x16 slot, providing expandability options for users. This slot allows for easy installation of standard half-size PCIe cards to suit various application needs.
WLAN Antenna Support
In addition to its multimedia content display capabilities, the P115-ADL-TRA also offers support for optioanl WLAN module antennas. This feature enables wireless network connectivity, enhancing flexibility and convenience.
User-Friendly Screw Design
Designed with ease of maintenance in mind, the P115-ADL-TRA features a user-friendly screw design. With just two screws located on the back chassis, technicians can quickly and effortlessly remove the back cover, minimizing downtime and simplifying maintenance tasks.
