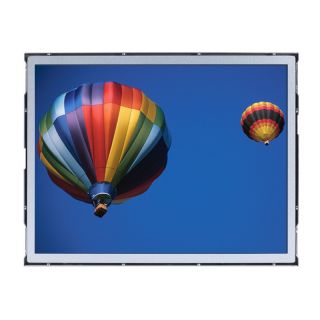

Axiomtek P6151O 15" XGA TFT Industrial Open Frame Monitor
Levertijd:
2~7 dagen
SKU
P6151O
15" XGA TFT Industrial Open Frame Monitor
● 15" XGA TFT LED backlight LCD
● Resistive touchscreen with 420 nits high brightness
● Full range screw-type (locked) AC-in or 12V/24V DC-in (option)
● HDMI, DIV-D and VGA with multi-signal inputs
● Built-in speakers
The P6151O is an ultra slim industrial open frame monitor, which adopts 15-inch 420 nits XGA LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI.
Featuring, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. With the compact mechanism design, users can enjoy free from space constraint.
It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.
Meer informatie
Art.nr.
P6151O
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
Open frame monitor
Mounting
Open frame mount, wall mount and VESA arm
LCD Panel
Display 15" XGA TFT LCD
Max. Resolution 1024 x 768
Max. Colors 16.7M
Active Area (mm) 304.128 x 228.096
Pixel Pitch (mm) 0.297 x 0.297
Response Time 16ms
Backlight LED backlight
Backlight MTBF 30,000 hrs
Viewing Angle (H/V) 160°/160°
Contrast Ratio 800 (TYP.)
Brightness (cd/m2) 420 nits
Max. Resolution 1024 x 768
Max. Colors 16.7M
Active Area (mm) 304.128 x 228.096
Pixel Pitch (mm) 0.297 x 0.297
Response Time 16ms
Backlight LED backlight
Backlight MTBF 30,000 hrs
Viewing Angle (H/V) 160°/160°
Contrast Ratio 800 (TYP.)
Brightness (cd/m2) 420 nits
Display Control
OSD (on screen display)
Weergavemodus
VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),
VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),
XGA 1024 x 768 (60/72/75Hz)
VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),
XGA 1024 x 768 (60/72/75Hz)
Input Signal
DVI-D
VGA
HDMI
Touchscreen: Serial RS-232 or USB interface
VGA
HDMI
Touchscreen: Serial RS-232 or USB interface
I/O Connector
1 x RS-232 or USB for touchscreen version
1 x DVI-D
1 x VGA
1 x HDMI
1 x Screw-type DC power input
1 x DVI-D
1 x VGA
1 x HDMI
1 x Screw-type DC power input
Power Adapter
Screw-type external AC / DC power adapter Power Consumtion 15W
Touchscreen
Thickness Resistive: 3.2 mm
Light Transmission Resistive: 80%
Power Consumption Resistive: +5V @ 100mA
Touch Life Resistive: 35 million touches
Controller interface: RS-232 D-type
9-pin male connector or USB
Light Transmission Resistive: 80%
Power Consumption Resistive: +5V @ 100mA
Touch Life Resistive: 35 million touches
Controller interface: RS-232 D-type
9-pin male connector or USB
Grootte
335 mm (13.19") (W) x 58.5 mm (2.30") (D) x 261.5 mm
(10.29") (H)
Weight (net/gross)
3.08 kg (6.79 lb)/4.58 kg (10.1 lb)
Environmental
Operating temperature: -20°C ~ +55°C (-4°F ~ +131°F)
Relative humidity: 20%~90% @ 40°C, non-condensing
Relative humidity: 20%~90% @ 40°C, non-condensing
Certification
CE
