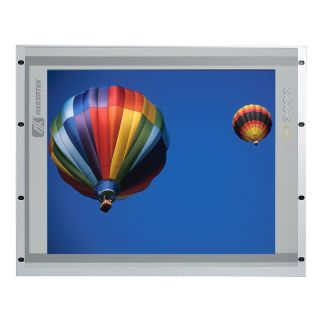

Axiomtek - P6191 - 19" SXGA TFT Industrial Monitor
● 19" SXGA TFT LED backlight LCD
● NEMA 4/12 (IP65)- compliant panel mounting flat panel monitor
● Supports panel mount, wall mount, rack mount and VESA arm
● Resistive touchscreen
● Supports full range screw-type AC-in or 12V/24V DC-in (optional)
● VGA, HDMI and DVI-D with multi-signal inputs
The P6191 is 19-inch ultra-slim industrial touch monitors with IP65-rated front bezel. The feature-rich monitor adopts resistive touchscreen with 250 nits high brightness and energy-saving LED-backlight panel. Designed for flexibility, the P6191 supports multi-signal inputs including DVI-D, VGA and HDMI. These slim and light industrial LCD monitor is designed to fit a wide range of applications. There are also options for USB or RS-232 touch control interface. The compact industrial LCD display supports various mounting ways including panel mount, VESA arm, wall mount, and rackmount. Featuring ultra-slim and light mechanism design, it can be easily deployed in any space-limited environments.
FPMPMI mounting (video electronics standards association
Flat Panel monitor physical mounting interface)
| Display Type | Display 19" TFT SXGA LED |
| Max. Resolution | 1280 x 1024 |
| Max. Colors | 16.7M |
| Active Area (mm) | 337.92 x 270.33 |
| Pixel Pitch (mm) | 0.264 x 0.264 |
| Response Time | 5ms |
| Backlight | Backlight LED backlight |
| Backlight MTBF | 30,000 hrs |
| Viewing Angle (H/V) | 170°/160° |
| Contrast Ratio | 1000 (TYP.) |
| Brightness (cd/m2) | 350 nits |
VGA 720 x 400 (70Hz), XGA 1024 x 768 (60/70/75Hz),
SVGA 800 x 600 (60 / 72Hz)
SXGA 1280 x 1024 (60/70/75Hz)
DisplayPort
HDMI
Touchscreen: Serial RS-232 or USB interface
1 x RS-232 or USB for touchscreen version
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x Screw-type DC power input
| Thickness | Resistive: 3.2mm |
| Light Transmission | Resistive: 80% |
| Power Consumption | Resistive: +5V@ 100mA |
| Touch Life | Resistive: 35million touches Controller interface: RS-232 D-Type 9-pin male connector or USB connector |
Storage temperature: -20°C ~ +60°C
Relative humidity: 20% ~ 90%, non-condensing
