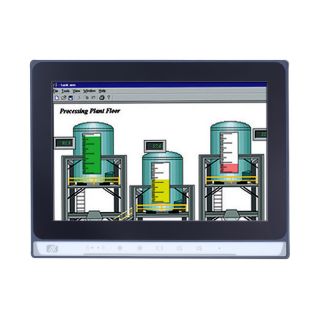

Axiomtek P6103W 10.1" WXGA TFT Widescreen Industrial LCD Monitor
10.1" WXGA TFT Widescreen Industrial LCD Monitor
● 10.1" WXGA TFT LED backlight LCD
● Projected capacitive multi-touch
● NEMA 4/12 (IP65)- compliant flat panel monitor
● Supports panel mount, wall mount, rack mount and VESA arm
● Full range screw-type (locked) AC-in or 12V/24V DC-in (optional)
● DVI-D, VGA and HDMI with multi-signal inputs
The P6103W is an ultra slim industrial LCD monitor, which adopts 10.1-inch 350 nits WXGA LED backlight LCD display and supports multi-signal interfaces including DVI, VGA and HDMI. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-In means it is fit for all kinds of industrial environments. Moreover, the P6103W supports panel mount, wall mount or VESA FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty industrial fields.
Max. Resolution 1280 x 800
Max. Colors 16.7M
Active Area (mm) 216.96 x 135.60
Pixel Pitch (mm) 0.1695 × 0.1695
Response Time 25ms
Backlight LED backlight
Backlight MTBF 25,000 hrs
Viewing Angle (H/V) 170°/170°
Contrast Ratio 800 (TYP.)
Brightness (cd/m2) 350 nits
VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),
WXGA 1280 x 800 (60/72/75Hz)
VGA
HDMI
Touchscreen: Serial RS-232 or USB interface
1 x DVI-D
1 x VGA
1 x HDMI
1 x Screw-type DC power input
