Axiomtek Panel PC GOT-808
Levertijd:
Uit voorraad leverbaar
SKU
GOT-808

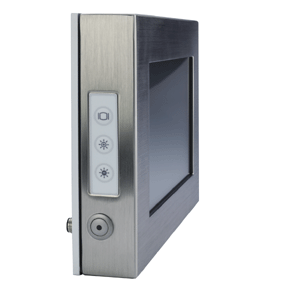

8.5" IP66-rated Vehicle Touch Panel Computer (-20°C ~ +55°C)
● 8.5" WVGA (800 x 480) color TFT LCD display
● Fanless operation
● Water/dust-proof design (full enclosure: IP66)
● Orientated ISO7637 9V-36VDC vehicle power supply
● Wide operating temperature range of -20°C ~ +55°C
● Supports VESA mount
The GOT-808 is specially designed for vehicle and heavy-duty applications. Its IP66-rated full enclosure protects system from water and dust penetrating under any rugged environment. The GOT-808 outfits vehicle power supply ranging from +9VDC to 36VDC to implement vehicle application. It adopts 16:9 WVGA wide screen LCD panel, providing carefree support with every format of resolution for GPS, navigation and more applications.
Meer informatie
Art.nr.
GOT-808
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
Stainless type 316
LCD Panel
| Display Type | 8.5" WVGA TFT LCD (GOT-808) |
| Brightness (cd/m2 ) | 300 nits (GOT-808) |
| Resolution | 800 x 480 (GOT-808) |
| Viewing Angle (H/V) | 178°/178° (GOT-808) |
Main System
| CPU | Intel® Atom™ processor N455 1.66 GHz |
|
| Chipset | Intel® ICH8M |
|
| System Memory | 1 x 204-pin DDR3 SO-DIMM max.up to 2 GB |
|
| BIOS | AMI with Axiomtek standard features;such as, SmartView, Ethernet BootROM (RPL & PXE), customized defaultsaving features |
|
| Storage |
|
|
| Watchdog Timer | 255 levels, 0~255 sec. | |
| Onboard Graphics | Intel® GMA 3150 |
Optional Drive
N/A
Onboard Graphics
Intel® GMA 3150
I/O Connector
| 1 x RS-232 (COM 1) (optional RS-422/485) |
| 2 x USB 2.0 |
| 1 x DC |
| 1 x 10/100/1000Mbps Ethernet |
Expansion Interface
1x PCIe Mini Card slot
Camera
N/A
Touchscreen
| Capacitive type (GOT-808CV) |
| 4-wire resistive type (GOT-808R) |
Power Supply
9-36VDC
Grootte
263 mm (10.35") (W) x 45 mm (1.77") (D)
x 184 mm (7.24") (H)
Weight (net/gross)
2.32 kg (5.11 lb)/3.8 kg (8.37 lb)
Environmental
| Operation Temperature | -20 °C ~ +55 °C | ||
| Humidity | 10% ~ 95% @ 40°C; non-condensing |
||
| Operation Vibration |
|
Certification
CE, E13 (GOT-808CV)
Operating System
| Window® XP Embedded |
| Window® CE.NET |
| Window® XP |
| Windows® 7 |
