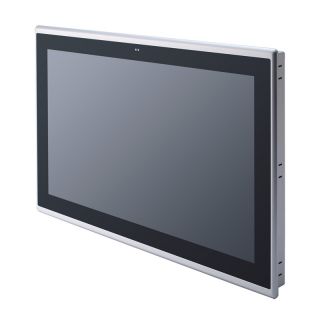

Axiomtek Panel PC GOT318A-ELK-WCD
●18.5" FHD projected capacitive multi-touch widescreen
●Fanless design with Intel® Celeron® processor J6412
●Supports WLAN module and antenna (optional)
●2.5" SATA SSD
●2 LAN, 4 USB, 1+2 COM, 1 HDMI, and 1 VGA
●IP65-rated aluminum front bezel
●Supports proximity and ambient light sensors (optional)
●Supports panel mount, VESA mount,
desktop stand, and wall mount
The GOT318A-ELK-WCD is a multi-touch fanless panel PC with 18.5-inch FHD LCD and supports Intel® Celeron® processor J6412. It provides M.2 Key E and PCI Express Mini Card slots for add-on devices such as Wi-Fi module. 18.5-inch FHD LCD with Projected Capacitive Multi-touch The GOT318A-ELK-WCD supports 350 nits of brightness, able to display contents in FHD resolution. With projected capacitive multi-touch screen, users can operate the device more directly and friendly. The touch glass surface is up to 7H for anti-scratch purpose.
Axiomtek’s GOT318A-ELK-WCD support one 260-pin DDR4-2133/2400/2666/3200 SO-DIMM slot with up to 32 GB system memory and offer one 2.5" SATA SSD and one mSATA.
Ready for more expansion possibilities, the panel PCs come with one full-size PCI Express Mini Card slot (PCIe + SATA + USB) and one M.2 Key E 2230 slot for wireless connectivity.

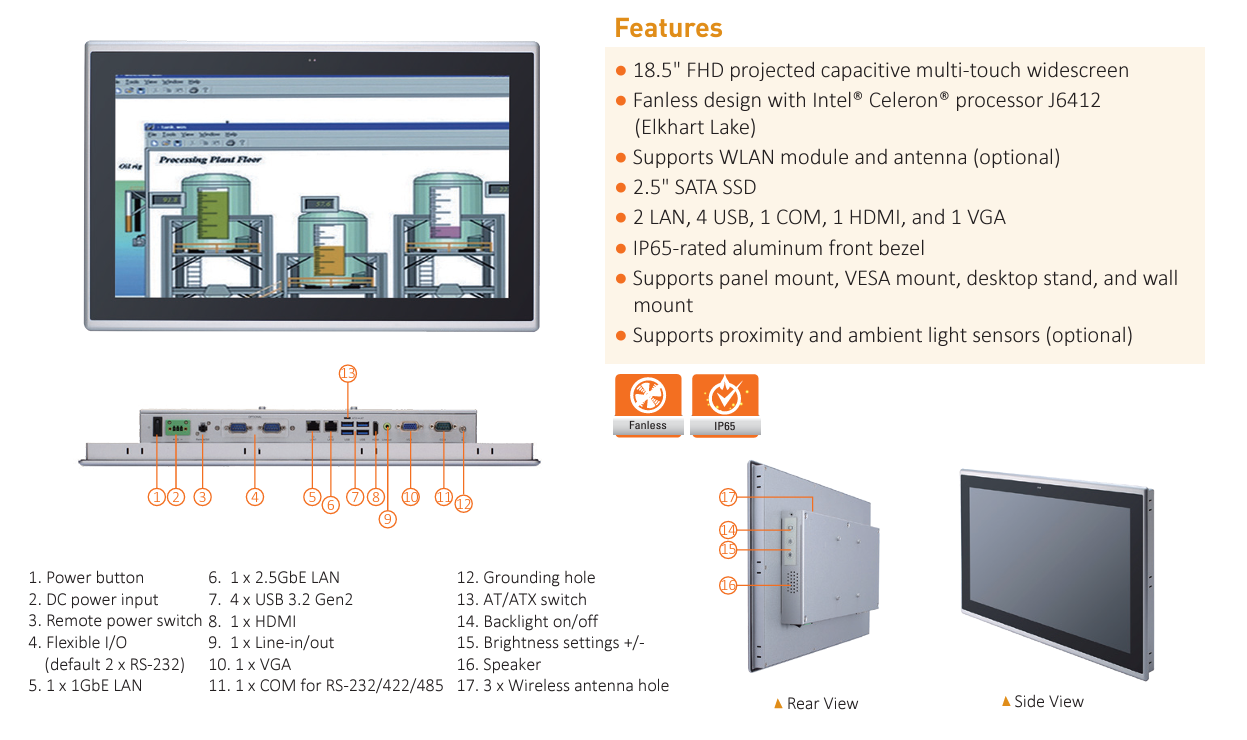

Its rich I/O interfaces include one COM for RS-232/422/485, one RJ-45 2.5Gb Base-T Ethernet, one RJ-45 1Gb Base-T Ethernet, four USB 3.2 Gen2 ports, one HDMI 1.4, and one VGA. They also support one Phoenix-type connector for DC power input, one ATX switch for power on/off, one Line-in/out, one remote power switch, one AT/ATX switch (for DC type only), and one grounding hole (for DC version).
Furthermore, they support TPM 2.0 for a higher level of security capabilities. supporting various OS, including scalable Windows 10/11 and compact Android 10, and Linux, to facilitate the development of unique applications.
