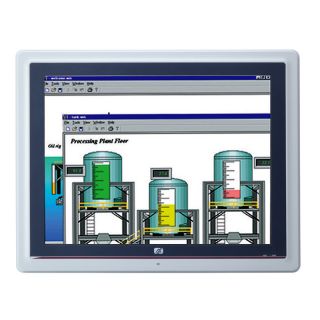

Fanless Touch Panel Computer - GOT5152T-834
15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900
● 15" XGA (1024 x 768) color TFT LCD display with LED backlight
● Fanless cooling system with Intel® Celeron® Processor J1900 4C @ 2.0/2.42 (Burst) GHz CPU
● Ultra slim design: thickness 54.6 mm
● Super light weight: 3.2 kg
● Easy for expansion: PCIe Mini Card slots
● Supports panel mount and optional wall mount/VESA arm mount/desktop stand (optional)
● Supports RFID (optional)
● Over-current protection fuse
The GOT5152-834 offers the latest fanless technology using Intel® J1900 4 cores (up to 2.42 GHz) CPU. Running Windows or Linux, this system provides
great performance for many commercial and industrial applications. This slim design incorporates a 15” 400 nits LCD display providing a bright XGA (1024 x 768) touch screen. Wireless communications is supported with a built-in antenna within the bezel, ready for your choice of optional PCIe Mini card. There are two choices for powering the unit, Class B that includes an external AC to DC power brick with screw-on power connector, or Class A with no power brick, providing a Phoenix style DC connector (9VDC – 36VDC).
Using an all industrial-grade IP-65 rated design, weighing 7 to 11lbs (depending on configuration), this computer provides an attractive cost, low power, high performance, reliable quality, slim size and low weight, all new for more demanding applications.
Super slim & ultra light design
The GOT5152T-834 is a super slim touch panel computer for space-limited environment with its thickness of 54.6mm and weight of 3.2 kg only, which make it installed
everywhere.
Built-in internal WLAN antenna
The GOT5152T-834 provides 2 PCIe Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN cards, customers can use the GOT5152T-834 in a wireless LAN/GPRS/ GSM/4G environments.
Excellent thermal solution: aluminum back chassis
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5152T-834 can dissipate the heat easily and keep the system operation stable.
Display Type | 15" XGA TFT LCD with LED backlight |
Brightness (cd/m2 ) | 400 nits (XGA) |
Resolution | 1024 x 768 |
Viewing Angel (H/V) | 160°/140° |
CPU | Intel® Celeron® Processor J1900 4 cores (up to 2.42 GHz) |
System Memory | 1 x 204-pin DDR3L-1333 MHz SO-DIMM max. up to 8 GB |
Storage |
1 x SATA SSD/HDD |
COM | 3 x RS-232/422/485 |
USB | 2 x USB 3.0 2 x USB 2.0 |
Ethernet | 2 x 10/100/1000Mbps Ethernet (Intel® i210IT) |
Audio | 1 x Line out |
Display | 1 x VGA |
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Operating temperature: 0°C ~ +50°C
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for CFast™ card
Windows 7 Professional
Windows 8.1 Professional
Windows Embedded 7 Standard
Windows Embedded 8 Standard
