Axiomtek Drawer AX69178

Levertijd:
3~4 weken
SKU
AX69178

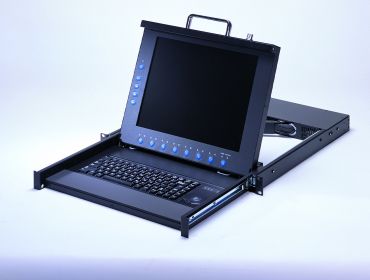

1U 17" LCD Rackmount Monitor/Keyboard Drawer with Optional 8-port KVM

● Industrial level input device for space-critical environments
● 17" TFT LCD display/supports SXGA (1280 x 1024) resolution
● Compact design, only 550 mm depth
● LED display for status indicating grade
● Integrated keyboard/touchpad
● OSD (On Screen Display) function for LCD display
● Built-in power supply
● Knob lock and slide rail lock
● Tempered glass to protect LCD panel

Axiomtek's AX69178 KVM Drawer is an ideal solution for Industrial-grade network administration with multiple servers and platforms. It integrates 17-inch TFT LCD display and ultra-low-profile compact industrial keyboard, touchpad which save up to 1/3 of valuable space from a rack cabinet and provide a user-friendly and reliable environment for network administrators. All these functions are integrated in a 19-inch 1U-height space with rugged construction design to achieve ultra space saving and high reliability for high quality industrial network applications. With the unique robust extension kit, the AX69170 fits into rack cabinet of any depth from just 550mm and up.
Meer informatie
Art.nr.
AX69178
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Algemeen
Housing Meets EIA RS-310C standard 1U 19" (482.6 mm) rackmount, black color or RAL 7035
Construction SECC
LCD 17" TFT LCD panel display with built-in power saving and back light protection functions
Display Size 17" diagonal
Pixel Pitch (H x V) 0.264 x 0.264 mm
Maximum Resolution SXGA (1280 x 1024)
Contrast Ratio 400:1 (typical)
Brightness 260 nits
Response Time Tr: 12 ms; Tf: 4 ms
Interface Analog RGB input
DVI input (option for AX69170 only)
LCD Controller Genesis gm5120 LCD controller
Scanning Frequencies Vsync: 57 ~ 75 Hz
Hsync: 80 KHz
Backlight Backlight automatically shuts off when display is closed
Display Colors 16.2 million (RGB 6-bit)
LCD panel protection Tempered glass to protect LCD panel
Viewing Angle Horizontal: 70/70 degrees (typical)
Vertical: 70/70 degrees (typical)
Signal Connector AX69170: 15-pin D-sub; DVI-D connector (optional)
AX69178: DB25 keyboard/ video/ mouse input
KVM Switch (AX69178 only)
KVM switch control: Front panel switch, hotkey & OSD control
KVM support: Up to eight systems; cascade to three levels, up to 512 systems
Monitor Control Type Digital microprocessor OSD control
Screen Adjustment Controls Menu, auto adjustment, brightness, contrast, phase, H/V position pitch, zoom, color, language and OSD position
Plug & Play DDC1/2 B
Keyboard
PS/2, 84-key computer keyboard (AX69178 only)
PS/2, 88-key notebook keyboard with numeric keypad (AX69178 only)
Integrated Pointing Device
PS/2, high-quality 16mm trackball (AX69178 only
PS/2, high-quality touchpad (AX69178 only)
MTBF 40,000hrs
Power Supply
Input: 115 to 230VAC, 1.8A, 50/60 Hz, 2/1A
Output: 12VDC @ 3A, 2.5W per channel
Type: AC PSU auto-switching
Viewing Area (w x h ) 337.92 x 270.34mm
Dimensions (w x h x d) 440 x 44 x 550mm
Weight (net weight) 14 kg
Operating Environment
Temperature: 0 °C ~ +45 °C
Humidity: 20 to 90% @ 40 °C, non-condensing
Vibration: 10 to 58 Hz, ±0.075 mm; 58 to 500 Hz, 1 g
Non-Operating Environment
Temperature: -20 °C ~ +60 °C
Humidity: 20 to 90% @ 40 °C, non-condensing
Vibration: 10 to 58 Hz, ±0.15 mm; 58 to 500 Hz, 2 g
