Axiomtek Drawer AX69158

Levertijd:
3~4 weken
SKU
AX69158

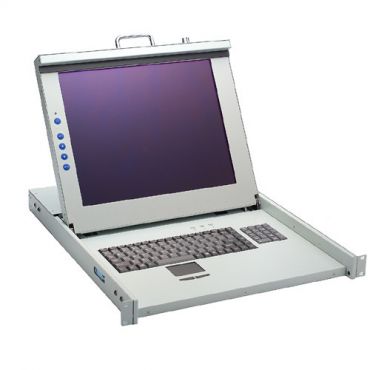

1U 15" LCD Rackmount Monitor/Keyboard Drawer with Optional 8-port KVM

● Industrial level input device for space-critical environments
● 15" TFT LCD display supports XGA (1024 x 768) resolution
● Compact design, only 492 mm depth
● LED display for status indicating grade
● Integrated keyboard/touchpad
● OSD (On Screen Display) function for LCD display
● Built-in power supply
● Knob lock and slide rail lock
● Tempered glass to protect LCD panel

Brochure EN
1U 15" LCD Rackmount Monitor/Keyboard Drawer with Optional 8-port KVM
SPECIFICATIES
Meer informatie
Art.nr.
AX69158
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Algemeen
Housing Meets EIA RS-310C standard 1U 19" (482.6 mm) rackmount, black color or RAL 7035
Construction SPCC with Ni-coating
LCD 15" TFT LCD panel display with built-in power saving and back light protection functions
Display Size 15" (381 mm) diagonal
Pixel Pitch (H x V) 0.297 x 0.297 mm
Maximum Resolution XGA (1024 x 768)
Contrast Ratio 500:1 (typical)
Brightness 250 nits
Response Time
Tr 10 ms
Tf 30ms
Scanning Frequencies
Vsync 58 ~ 75 Hz
Hsync 46.8 ~ 60.2 kHz
Display Colors 16.77 million
LCD panel protection Anti-glare glass with hard coating to protect LCD panel (2 x 249 x 333 mm)
Viewing Angle
Horizontal 60/60 degrees from center
Vertical 45/55 degrees from center
Signal Connector 15-pin mini D-sub
Monitor Control Type Digital microprocessor OSD control
Screen Adjustment Menu, auto adjustment, brightness, contrast, phase, H/V
Controls position pitch, zoom, color, language and OSD position
Plug & Play DDC1/2 B
Keyboard PS/2, 88-key plus numeric keypad
Integrated Mousepad
PS/2, high-quality touchpad with mouse buttons
Interface: DB25 system port
MTBF 30,000hrs
Power Supply
90 ~ 264 VAC, 47 ~ 63 Hz
AC PSU auto-switching
Power Consumption 26.25W
Viewing Area (w x h) 304.1 x 228.1mm
Dimensions (w x h x d) 440 x 44 x 492mm
Weight (net weight) 11 kg
Operating Environment
Temperature 0 °C ~ 45 °C
Humidity 20 to 90% @ 40 °C, non-condensing
Altitude 10,000-feet (3048-meters)
Shock 10 g, 11 ms duration, half sine/six axis
Vibration 10 to 58 Hz, ±0.075 mm; 58 to 500 Hz, 1 g
Non-Operating Environment
Temperature -40 °C ~ 70 °C
Humidity 5 to 95% @ 40 °C, non-condensing
Altitude 50,000-feet (15,240-meter)
Shock 15 g, 11 ms duration, half sine/six axis
Vibration 10 to 58 Hz, ±0.15 mm; 58 to 500 Hz, 2 g
