Power Supplies

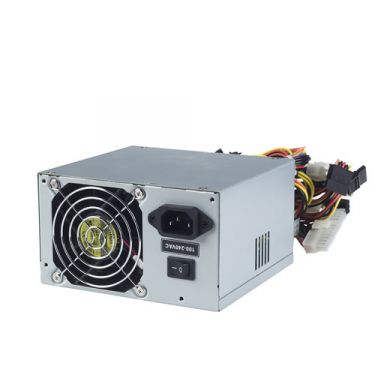

PS/2 Type; ATX500W

● Input Range: 90 ~ 265VAC Full Range
● Output Voltage: +5V, 24A (0.3A min)
+12V, 34A (1A min)
+12V1, 17A (1A min)
+12V2, 17A (1A min)
-12V, 0.8A (0.05A)
+5Vsb, 2A
● MTBF(hours): At 25 °C 100,000h
● Safety: TUV, CUL, CB, IEC60950-1, GB4943-2001, UL60950-1, EN60950-1
● Dimensions: 150 x 140 x 86mm
● Compatible with Axiomtek products: AX61221, AX61222, AX60501, AX60551, AX60552, AX61400, AX6145, AX6156, AX61491, AX61622, AX61492

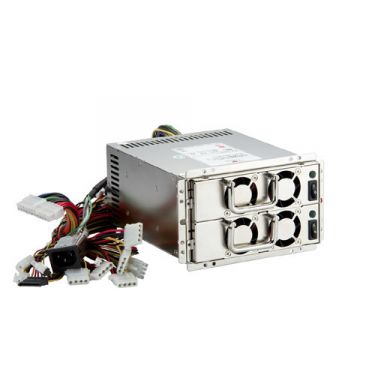

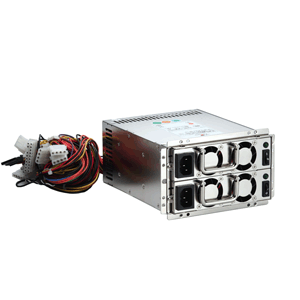

Mini Redundant Power; ATX500

● Input Range: 100~ 240VAC Full Range
● Output Voltage:
+5V, 25A (1A min)
+3.3V, 25A (1A min)
+12V, 14A (1A min)
-12V, 0.8A
-5V, 3.5A (0.1A min)
● MTBF(hours): AT 25 °C 100,000h
● Safety: UL, TUV, CB, CCC, RFI/EMI Standards, FCC Class B, CISPR22 Class B
● Dimensions: 185 x 150 x 86 mm
● Compatible with Axiomtek products: AX61492

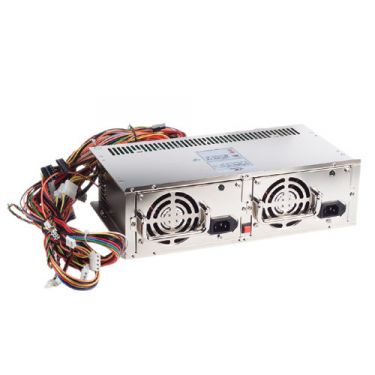

PS/2*2 Redundant Power; ATX460W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage: +5V, 40A (5A min)
+3.3V, 30A (1.0A min)
+12V, 32A (2.5A min)
-12V, 1A
-5V, 0.8A
+5Vsb, 2A (0.1A min)
● MTBF(hours): 100,000h
● Safety: UL, TUV, CE, CSA
● Dimensions: 194.2 x 354 x 106 mm
● Compatible with Axiomtek products: AX61622

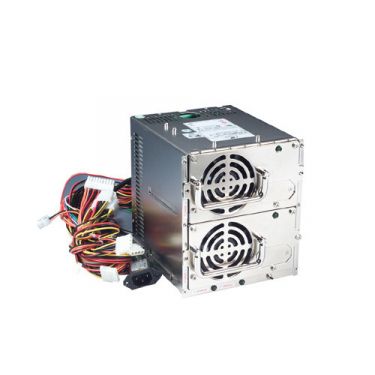

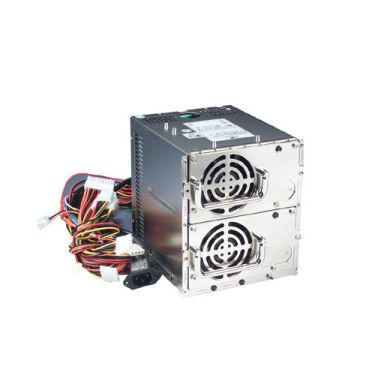

PS/2*2 Redundant Power; ATX400W

● Input Range: 100 ~ 240VAC Full Range
● Output Voltage:
+5V, 35A (5A min)
+3.3V, 28A (1A min)
+12V, 20A (2.5A min)
-12V, 1A
-5V, 0.8A
+5Vsb, 2A (0.1A min)
● MTBF(hours): 100,000h
● Safety: UL, TUV, CE, CSA
● Dimensions: 183 x 167 x 187.8mm
● Compatible with Axiomtek products: AX61492

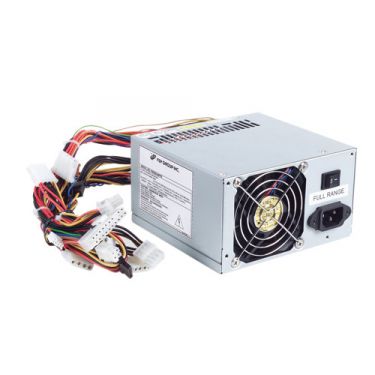

PS/2 Type; ATX400W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage:
+5V, 20A (0.5A min)
+3.3V, 20A (0.3A min)
+12V1, 16A (1A min)
+12V2, 16A (1A min)
-12V, 0.5A +5Vsb, 2.5A (1A min)
● MTBF(hours): At 25°C, 100,000h
● Safety: TUV, CS22.2 NO.60950-1,IEC, UL, NEMKO+CB, CE
● Dimensions: 150 x 140 x 74mm
● Compatible with Axiomtek products: AX61221, AX61222, AX60501, AX60551, AX60552, AX61400, AX6145, AX6156, AX61491, AX61622, AX61492

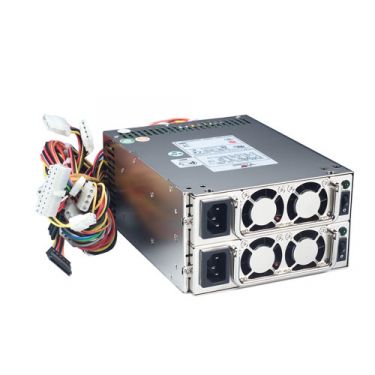

Mini Redundant Power; ATX400W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage:
+5V, 35A (3A min)
+3.3V, 25A (1A min)
+12V, 28A (2A min)
-12V, 1.2A
-5V, 0.5A
+5Vsb, 2A (0.1A min)
● MTBF(hours): 100,000h
● Safety: UL, UL+C, TUV, CB, CE
● Dimensions: 185 x 150 x 86mm
● Compatible with Axiomtek products: AX61491, AX6156E/LE/LLE, AX6069, AX61220

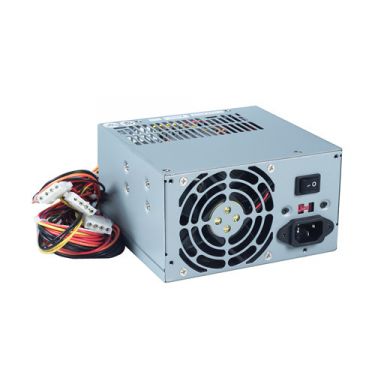

PS/2 Type; ATX300W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage:
+5V, 30A (0.1A min)
+3.3V, 28A (0.3A min)
+12V, 15A
-12V, 0.8A
-5V, 0.3A
+5Vsb; 2A
● MTBF(hours): At 25°C, 100,000h
● Safety: TUV, CS22.2 NO.60950-1,IEC, UL, NEMKO EN60950-1, CE, 3C
● Dimensions: 150 x 140 x 74mm
● Compatible with Axiomtek products: AX61221, AX61222, AX60501, AX60551, AX60552, AX61400, AX6145, AX6156, AX61491, AX61622, AX61492

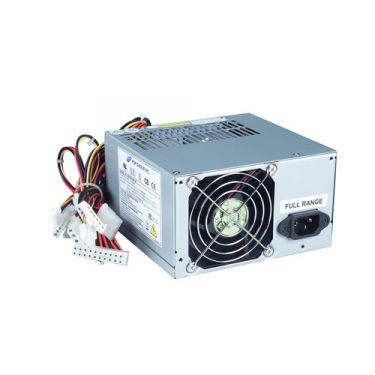

PS/2 Type; ATX300W

● Input Range: Slide Switch (115/230VAC)
● Output Voltage:
+5V, 30/21.5A (0.5A min)
+3.3V, 15/28A (0.3A min)
+12V, 15A (4.2A min)
-12V, 0.8A (0.4A min)
-5V, 0.3A (0.15A)
+5Vsb, 2A (1A min)
● MTBF(hours): At 25°C, 100,000h
● Safety: TUV, CS22.2 NO.60950-1, IEC, UL, NEMKO+CB, CE, 3C
● Dimensions: 150 x 140 x 74mm
● Compatible with Axiomtek products: AX61221, AX61222, AX60501, AX60551, AX61400, AX60552, AX6145, AX6156, AX61491, AX61622, AX61492

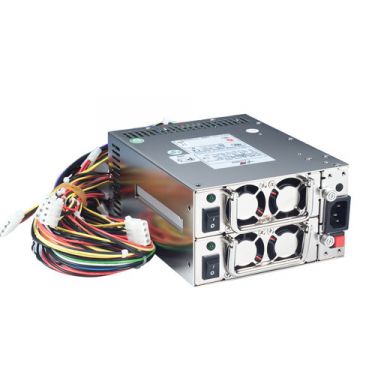

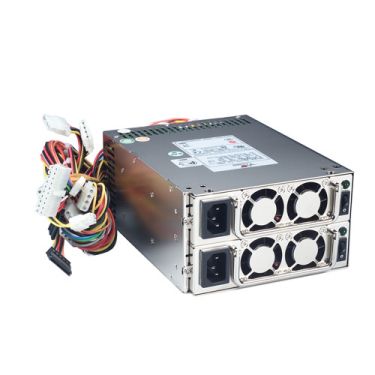

Mini Redundant Power; ATX300W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage:
+5V, 25A (3A min)
+3.3V, 18A (1A min)
+12V, 16A (2A min)
-12V, 0.5A
-5V, 0.5A
+5Vsb, 2A (0.1A min)
● MTBF(hours): 100,000h
● Safety: UL, UL+C, TUV, CB, CE
● Dimensions: 185 x 150 x 86mm
● Compatible with Axiomtek products: AX61220, AX61491, AX6156E/LE/LLE, AX6069

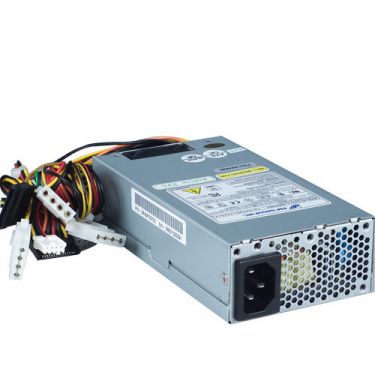

1U Type Power Supply ATX270W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage: +5V, 18A (0.5A min)
+3.3V, 16A (0.5A min)
+12V1, 16A (1A min)
-12V2, 10A (1A min)
-12V, 0.8A
+5Vsb, 2.5A
● MTBF(hours): At 25°C, 100,000h
● Safety: TUV, CSA 22.2 NO.60950-1, IEC, UL, NEMKO, CE
● Dimensions: 150 x 81.5 x 40.5mm
● Compatible with Axiomtek products: AX6052 / AX61120 / AX60400 / AX60530

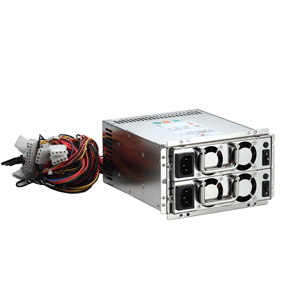

Mini Redundant Power; ATX500 (AC inlet in front)

● Input Range: 100~ 240VAC Full Range
● Output Voltage:
+5V, 25A
+3.3V, 25A
+12V, 41A
-12V, 0.8A
-5Vsb, 3.5A
● MTBF(hours): At 25 °C, 100,000h
● Safety: CB, TUV, CE, FCC, C-TICK, CUL, UL, CCC
● Dimensions: 185 x 150 x 86mm
● Compatible with Axiomtek products: AX6156E/LE/LEE/AX61220/AX61491

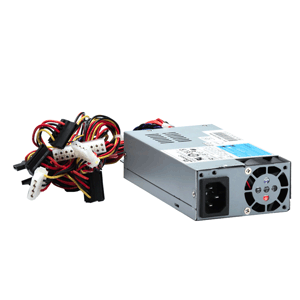

1U Type Power Supply; ATX200W

● Input Range: 90 ~ 264VAC Full Range
● Output Voltage:
+5V, 17A7
+3.3V, 14A
+12V1, 6A
-12V2, 12A
-12V, 0.8A
+5Vsb, 2A
● MTBF(hours): At 25 °C, 100,000h
● Safety: CB, TUV, CE, FCC, C-TICK, CUL, UL, CCC
● Dimensions: 150 x 81.5 x 40.5mm
● Compatible with Axiomtek products: AX61120/AX60530/AX60400
