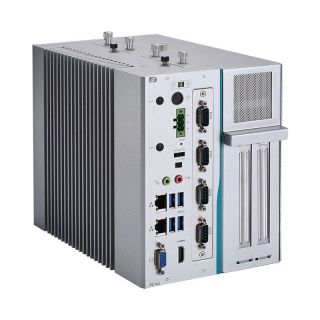

Axiomtek IPC962-512-FL
2-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots
● LGA1151 Socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
● Intel® Q170 chipset
● Supports 2 expansion slots
● Supports power input: 24VDC (uMin=19V/uMax=30V)
● Compact & front I/O design
● -10°C to +60°C wide operating temperature range with W.T. SSD
● Supports 2 swappable 2.5" HDD
● Supports optional WLAN module & antenna
The IPC962-512-FL is powered by the 7th/6th generation Intel® Core™ and Celeron® processors (codename: Kaby Lake/Skylake) with the Intel® Q170 chipset. It is equipped with dual DDR4-2133 SO-DIMM slots with up to 32GB system memory.
The ultra-compact industrial computer supports two swappable 2.5" HDDs; moreover, it offers flexible expansion options with one I/O module slot and two PCI/PCIe slots. It also has a wide operating temperature range of -10°C to +60°C and a 24VDC (uMin=19V / uMax=30V) power input for severe environments.
According to the features above, this rugged IP40 industrial PC is a great choice for a wide variety of Industrial IoT applications including automatic optical inspection, digital signage, motion control, and factory automation..
1 x Remote switch
1 x Reset switch
1 x 3-pin terminal block
1 x AT/ATX selectable switch
2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
4 x USB 3.0
1 x HDMI
1 x VGA
1 x Mic-in
1 x Line-out
AX93512: 2 x RS-232/422/485 with isolated 1.5KVDC
& 8-in/8-out with isolated 1.5KVDC DIO module
AX93516: 4 x RS232/422/485 with isolated 1.5KV
AX96206: 1 PCIe x16 Gen. 3 + 1 PCI
AX96207: 2 PCI 1 x full-size PCI Express Mini Card slot with USB & PCIe interface
Input: 24 VDC (uMin=19V/uMax=30V)
2. -10°C ~ +50°C (+14°F ~ +122°F) with 7th gen. Intel® Core™ and W.T. HDD or W.T. SSD
