Industrial Systems

Industrial Systems
Axiomtek has a full range of fanless barebone systems and 19" rackmount barebone systems, suitable for different environments and applications. Our industrial systems deliver powerful computing performance, expansibility, high storage capacity, reliability, solid design, and cost-effectiveness. Certification with CE marking, additionally, the IPC series provides the most popular interfaces, such as Ethernet ports, USB ports, PCI/PCIe expansion slots, PS/2 ports, and COM ports.
Desc
per pagina

7 producten

  1. IPC964-512-FL  4-slot Fanless Industrial System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, and Front-access I/O and PCIe/PCI Slots

    4-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    ● LGA1151 Socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
    ● Intel® Q170 chipset
    ● Supports 4 expansion slots
    ● Supports power input: 24VDC (uMin=19V/uMax=30V)
    ● Compact & front I/O design
    ● -10°C to +60°C wide operating temperature range with W.T. SSD
    ● Supports 2 swappable 2.5" HDD
    ● Supports optional WLAN module & antenna

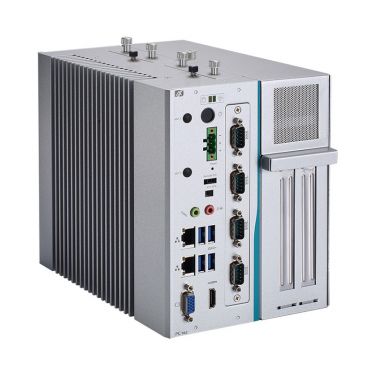

  2. IPC962-512-FL 2-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    2-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    ● LGA1151 Socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
    ● Intel® Q170 chipset
    ● Supports 2 expansion slots
    ● Supports power input: 24VDC (uMin=19V/uMax=30V)
    ● Compact & front I/O design
    ● -10°C to +60°C wide operating temperature range with W.T. SSD
    ● Supports 2 swappable 2.5" HDD
    ● Supports optional WLAN module & antenna

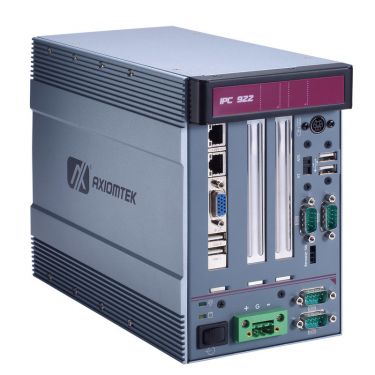

  3. IPC922-215-FL 2-slot Fanless Industrial System with Intel® Celeron® Processor J1900 (up to 2.42 GHz), and Front-access I/O and PCIe/PCI Slots

    2-slot Fanless Industrial System with Intel® Celeron® Processor J1900 (up to 2.42 GHz), and Front-access I/O and PCIe/PCI Slots

    ● Intel® Celeron® processor J1900 (up to 2.42 GHz)
    ● Fanless & ventilation-free
    ● Supports 2 expansion slots
    ● 10 - 30 V DC to DC power supply
    ● Compact & front I/O design

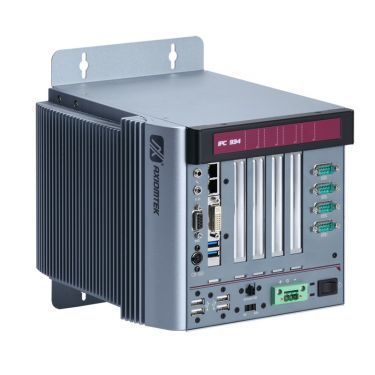

  4. 4-slot Fanless Barebone System with 4th Generation Intel® Core™ i7/i5/i3 and Celeron®Processor up to 3.3 GHz(Codename Haswell/Haswell Refresh), Intel® Q87, PCIe and PCI Slots

    4-slot Fanless Barebone System with 4th Generation Intel® Core™ i7/i5/i3 and Celeron® processors up to 3.3 GHz (Codename Haswell/Haswell Refresh), Intel® Q87 Chipset, PCIe and PCI Slots

    ● 4th Generation Intel® Core™ i7/i5/i3 and Celeron® processors, up to 45W (Codename Haswell/Haswell Refresh)
    ● Intel® Q87 chipset
    ● Supports four expansion slots
    ● DC to DC power supply supports 10~30V
    ● Compact & front I/O design
    ● Rugged, up to -10°C ~ +50°C fanless operation with W.T. SSD or W.T. CFast™
    ● Supports Intel® AMT 9.0
    ● Support SATA 6Gbs with RAID 0,1

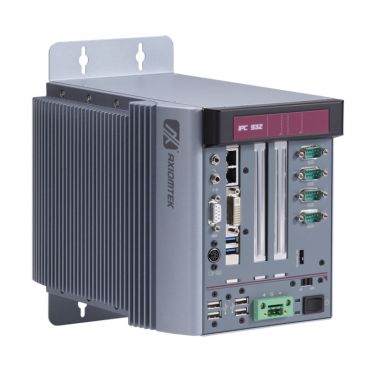

  5. IPC932-230-FL

    2-slot Fanless Barebone System with 4th Generation Intel® Core™ i7/i5/i3 and Celeron® processors up to 3.3 GHz (Codename Haswell/Haswell Refresh), Intel® Q87 Chipset, PCIe and PCI Slots

    ● 4th Generation Intel® Core™ i7/i5/i3 and Celeron® processors, up to 45W (Codename Haswell/Haswell Refresh)
    ● Intel® Q87 chipset
    ● Supports two expansion slots
    ● DC to DC power supply supports 10~30V
    ● Compact & front I/O design
    ● Rugged, up to -10°C ~ +50°C fanless operation with W.T. SSD or W.T. CFast™
    ● Supports Intel® AMT 9.0
    ● Supports two 2.5 SATA HDD



  6. 4-slot Fanless System with Socket G2 Intel® Core™ i7/ i5/ i3 Processor up to 2.5 GHz, Intel® HM65 PCH, PCIe and PCI Slots

    4-slot Fanless System with Socket G2 Intel® Core™ i7/ i5/ i3 Processor up to 2.5 GHz, Intel® HM65 PCH, PCIe and PCI Slots

    ● Socket G2 (rPGA 988B) for Intel Core™ i7/ i5/ i3/ Celeron processors up to 35W
    ● Fanless operation
    ● Intel® HM65 PCH
    ● Supports 4 expansion slots
    ● DC to DC power supply supports 10~30V
    ● Compact & front I/O design



  7. Axiomtek Industrial system IPC912-213-FL front view

    2-Slot Fanless System with Intel® Core™ i7/ i5/ i3 Processor up to 2.5 GHz,Intel® HM65 PCH, PCIe & PCI Slots

    ● Socket G2 for Intel® Core™ i7/ i5/ i3/ Celeron® processors, under 35W
    ● Fanless operation
    ● Intel® HM65 PCH
    ● Supports 2-slot expansion slots
    ● DC to DC power supply supports 10V ~ 30V
    ● Compact & front I/O design
