Axiomtek Rackmount Chassis AX61492
Levertijd:
2~7 dagen
SKU
AX61492

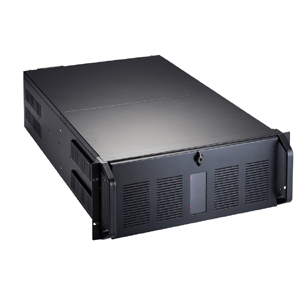

4U 20-slot Extended Rackmount Chassis
● Three 5.25" and two 3.5" HDD drive bays
● Three 12 cm hot-swap ball-bearing fans

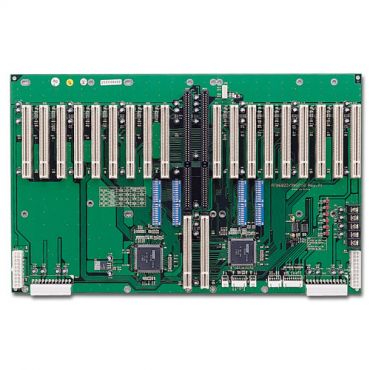

● Supports 20-slot backplane
● Hot-swap redundant or PS/2 power supply supported
4U 20-slot Extended Rackmount Chassis
Meer informatie
Art.nr.
AX61492
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Black
Construction
Heavy-duty cold-rolled steel
Drive Capacity
Exposed 3 x 5.25" HDD drive bay and 2 x 3.5" HDD
drive bay
Cooling
3 x 12 cm hot-swap ball-bearing fans (88 CFM/each)
with a removable filter
Front Panel Indicators
1 x power on/off; 3 x HDD
Front Panel Controls
1 x power on/off; 4 x system reset; 1 x alarm reset
Front Panel Connectors
2 x USB, 1x PS/2 6-pin keyboard/mouse
Pre-punched Panel
N/A
Centralized Monitoring System
N/A
System Board
SBCs
Expansion Interface
20-slot backplane
Speaker
1 x 0.4W speaker
Operating Temperature Range
0°C ~ 40°C
Grootte
482.6 mm W) x 678.5 mm (D)
x 176.4 mm (H)
Weight (net/gross)
2.3 kg / 24.6 kg
