Axiomtek Rackmount Chassis AX61400
Levertijd:
3~4 weken
SKU
AX61400
4U 14-slot Rackmount Chassis
● Three 5.25" and max. two 3.5" HDD drive bays
● One 12cm ball-bearing fan

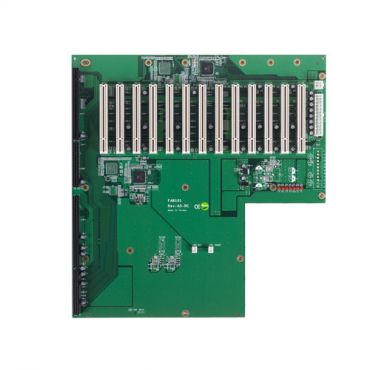

● Supports 14-slot backplane or ATX MB
● Single PS/2 size power supply supported

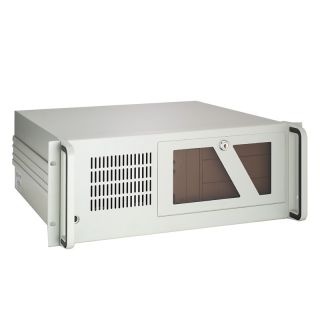

The Axiomtek Rackmount Chassis AX61400 is a 4U-high rackmount industrial computer chassis which can hold a 14-slot PCI/ISA backplane and supports ATX Motherboard form factor. One 12cm ball-bearing cooling fan maintains positive air circulation through the whole chassis. The front access I/O ports and drive bays are designed for ease access and maintenance. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.
Meer informatie
Art.nr.
AX61400
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Beige
Construction
Heavy duty cold-rolled steel
Drive Capacity
Exposed 3 x 5.25" HDD drive bay and 1 x 3.5" HDD
drive bay; internal 1 x 3.5" HDD drive bay
Cooling
1 x 12 cm ball-bearing fan (78 CFM/each)
with a removable filter
Front Panel Indicators
1 x power on/off; 1 x HDD
Front Panel Controls
1 x power on/off; 1 x system reset
Front Panel Connectors
2 x USB; 1 x PS2 mini-DIN keyboard
Pre-punched Panel
1 x 25-pin; 1 x DIN 5-pin keyboard
Centralized Monitoring System
N/A
System Board
SBCs or 12" x 9.6" ATX MB or IMB series
Expansion Interface
14-slot backplane
Speaker
1 x 0.4W speaker
Operating Temperature Range
0 °C ~ +40 °C
Grootte
482.6 x 177 x 450mm (W x H x D)
Weight (net/gross)
15 kg / 16.3 kg
