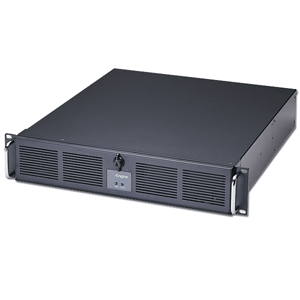

Axiomtek Rackmount Chassis AX61221TM
Levertijd:
3~4 weken
SKU
AX61221TM
2U Rackmount Chassis for ATX Motherboard
● Supports 12" x 9.6" standard ATX MB & IMB200
● Internal two 3.5" HDD drive bays
● Front-accessible one 3.5", one 5.25" and one slim CD-ROM
The Axiomtek Rackmount Chassis AX61221TM is a 2U-high rackmount industrial computer chassis. The unit includes a 3-slot riser card (optional), and supports ATX Motherboard form factor. The front access I/O ports and drive bays are designed for ease access and maintenance. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.
Meer informatie
Art.nr.
AX61221TM
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Black
Construction
Heavy-duty cold-rolled steel
Drive Capacity
- Exposed 1 x slim-line CD-ROM, 1 x 3.5" HDD drive
bay & 1 x 5.25" HDD drive bay; internal 2 x 3.5"
HDD drive bay
or
- Exposed 1 x slim-line CD-ROM & 1 x 3.5" HDD drive bay; internal 3 x 3.5" HDD drive bay
or
- Exposed 1 x slim-line CD-ROM & 1 x 3.5" HDD drive bay; internal 3 x 3.5" HDD drive bay
Cooling
1 x 8 cm ball-bearing fan (38.6 CFM/each)
Front Panel Indicators
1 x power on/off; 1 x HDD
Front Panel Controls
1 x power on/off; 1 x system reset
Front Panel Connectors
2 x USB
Pre-punched Panel
N/A
Centralized Monitoring System
N/A
System Board
N/A
Expansion Interface
PCI riser card with 3-slot 32-bit (optional)
Speaker
1 x 0.3W speaker
Operating Temperature Range
0 °C ~ +40 °C
Grootte
482.6 x 177 x 450mm (W x H x D)
Weight (net/gross)
12.0 kg / 13.5 kg
