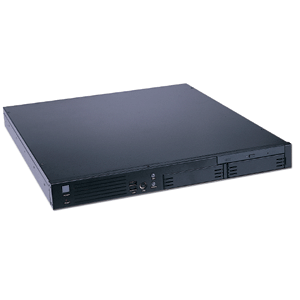

Axiomtek Rackmount Chassis AX61120TP
Levertijd:
3~4 weken
SKU
AX61120TP
1U Rackmount Chassis
● PICMG 1.3 SBC structure with 2 free PCI slots
● Internal two 3.5" HDD drive bays
● Slim-line CD-ROM disk bay for ease of system installation
● Special cooling system design for supporting Intel® Pentium® 4 processor
● ATX 270W power supply (with PFC) for Intel® Pentium® 4 SBCs
The Axiomtek Rackmount Chassis AX61120TP is a slim 1U-high rackmount industrial computer chassis. This chassis supports up to two PCI expansion slots and can be equipped with a 250W ATX PFC power supply. The front access I/O ports are designed for ease access. The efficient cooling system keeps the system away from over heated. This industrial chassis features two internal 3.5" drive bays and a slim-line CD-ROM disk bay for ease of system installation. Furthermore, the Axiomtek Rackmount Chassis AX61120TP can accommodate various full-size PICMG single board computers.
Meer informatie
Art.nr.
AX61120TP
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Black
Construction
Heavy-duty cold-rolled steel
Drive Capacity
Exposed 1 x slim-line CD-ROM
Internal 2 x 3.5" HDD drive bay
Internal 2 x 3.5" HDD drive bay
Cooling
3 x 4 cm ball bearing fan
Front Panel Indicators
1 x power on/off, 1 x HDD
Front Panel Controls
1 x power on/off and 1 x system reset
Front Panel Connectors
2 x USB, 1 x PS/2 6-pin
Pre-punched Panel
Rear 1 x 9-pin, 1 x 25-pin
Centralized Monitoring System
N/A
System Board
Full-size SBCs
Expansion Interface
2 x PCI card (half-size)
Speaker
N/A
Operating Temperature Range
0 °C ~ +40 °C
Grootte
482.6 x 44.3 x 500.0mm (W x H x D)
Weight (net/gross)
9.8 kg / 10.5 kg
