Backplane

8-slot ATX-supported PICMG 1.3 Bus Half-size Backplane

● Designed for PICMG 1.3 half-size SBC
● Compatible with the AX60551/AX60552 chassis
● Supports one PICMG 1.3 CPU card slot, one PCI Express x16 slot, and six 32bit/33MHz PCI slots

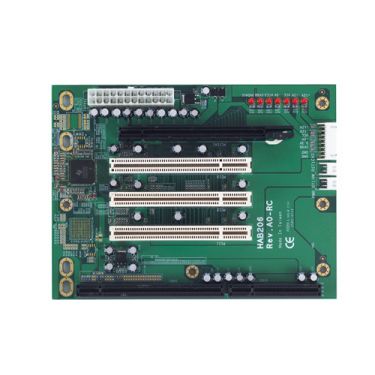

5-slot ATX-supported PICMG 1.3 Bus Half-size Backplane

● Designed for PICMG 1.3 half-size SBC
● Compatible with the AX6052/AX60501/AX60530 chassis
● Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot and three 32bit/33MHz PCI slots

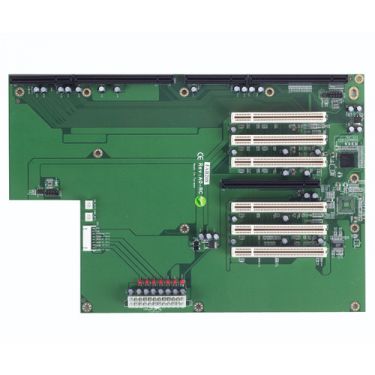

8-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with AX60551 / AX60552 chassis
● Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot, and six 32bit/33MHz PCI slots

5-slot ATX-supported 2U Butterfly PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with AX61220TP/AX61222TP chassis
● Supports one PICMG 1.3 CPU card slot and five 32bit/33MHz PCI slots

13-slot ATX-supported PICMG1.3 Backplane

● Designed for PICMG 1.3 SBC
● Compatible with AX61400, AX6145, AX61460, AX6156 series and AX61491
● Supports one PICMG 1.3 CPU card slot, three PCIe x1 slots, one PCIe x16 slot, and eight 32bit/33MHz PCI slots

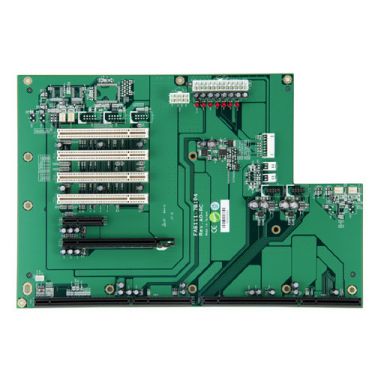

7-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Supports one PICMG 1.3 CPU card slot, one PCIe x4 slot, one PCIe x16 slot, and four 32bit/33MHz PCI slots

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Supports one PICMG 1.3 CPU card slot, one PCIe x4 slot, one PCIe x16 slot, and two 32bit/33MHz PCI slots

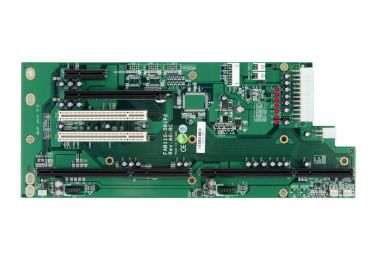

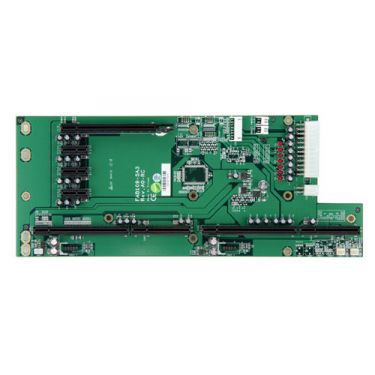

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Supports one PICMG 1.3 CPU card slot, three PCIe x1 slot, and one PCIe x16 slot

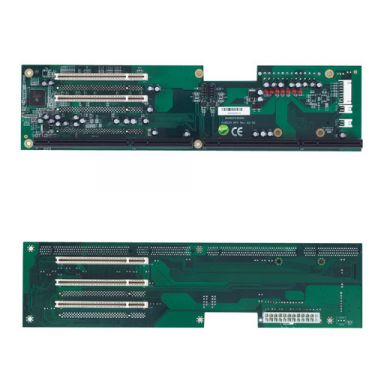

5-slot ATX-supported 2U Butterfly PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with the AX61222TP/AX61220TP chassis
● Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot, and three 32bit/33MHz PCI slots

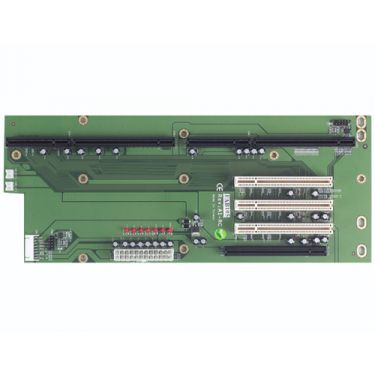

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with the AX60501/AX6052 chassis
● Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot, and three 32bit/33MHz PCI slot

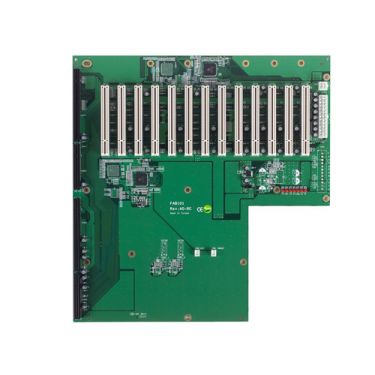

14-slot ATX-supported Bridged PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with AX61400 / AX6145 / AX6156LE / AX6156LLE / AX6156E / AX61491 chassis
● Supports one PICMG 1.3 CPU card slot and thirteen 32bit/33MHz PCI slots

14-slot ATX-supported PICMG 1.3 Bus Passive Backplane

● Designed for PICMG 1.3 SBC
● Compatible with AX61400 / AX6145 / AX61460 / AX6156LE / AX6156LLE / AX6156E / AX61491 chassis
● Supports one PICMG 1.3 CPU card slot, four ISA slots, four PCIe x1 slots, one PCIe x16 slot, and four 32bit/33MHz PCI slots

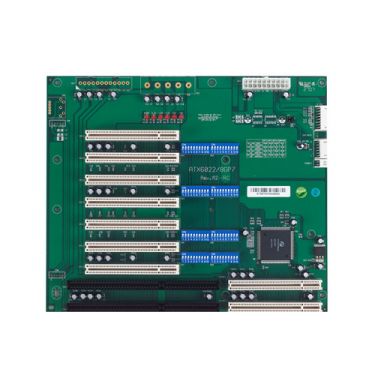

8-slot ATX-supported Bridged PCI Bus Active Backplane

● 1 PICMG, 7 PCI
● Compatible with AX60551, AX60552, & AX6069
● Supports both AT and ATX power supply

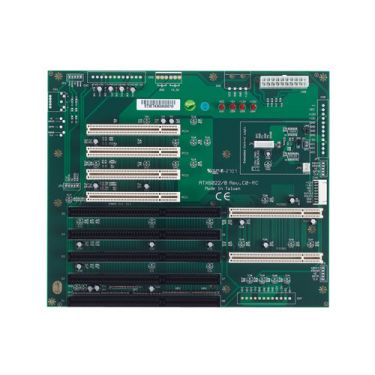

8-slot ATX-supported Bridged PCI Bus Active Backplane

● 1 PICMG, 4 PCI and 3 ISA
● Compatible with AX6069, AX60552,and AX60551
● Supports both AT and ATX power supply

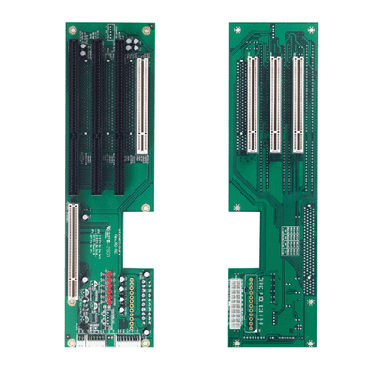

6-slot ATX-supported PICMG Bus Passive Backplane (vertical)

● 1 PICMG, 4 PCI and 1 ISA
● Compatible with AX61222TP/AX61220TP
● Supports ATX power supply
● For 2U chassis

6-slot ATX-supported PICMG Bus Passive Backplane

● 1 PICMG, 4 PCI and 1 ISA
● Compatible with AX60501, AX60530, & AX6052
● Supports both AT and ATX power supply

4-slot ATX-supported PICMG Bus Passive Backplane

● 1 PICMG, 3 PCI
● Supports both AT and ATX power supply

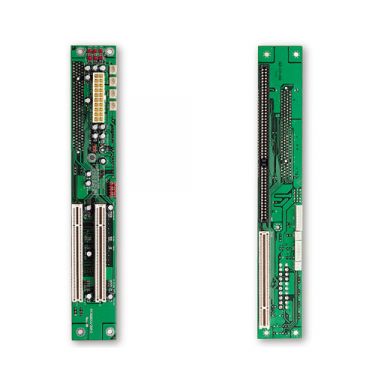

3-slot ATX-supported PICMG Bus Passive Backplane (vertical)

● 1 PICMG, 2 PCI
● Compatible with AX61120TP
● Supports ATX power supply
● For 1U chassis

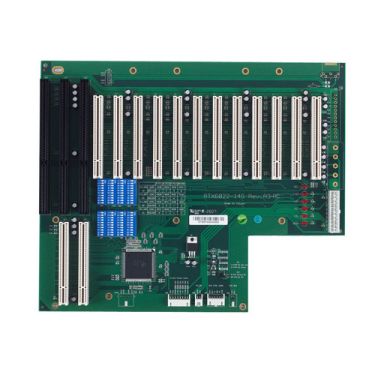

14-slot ATX-supported Bridged PICMG Bus Active Backplane

● 1 PICMG, 7 PCI and 6 ISA
● Compatible with AX61400, AX6145, AX61460, AX6156 series & AX61491
● Supports both AT and ATX power supply

14-slot ATX-supported Bridged PICMG Bus Active Backplane

● 1 PICMG, 12 PCI and 1 ISA
● Compatible with AX61400, AX6145, AX61460, AX6156 series, & AX61491
● Supports both AT and ATX power supply
