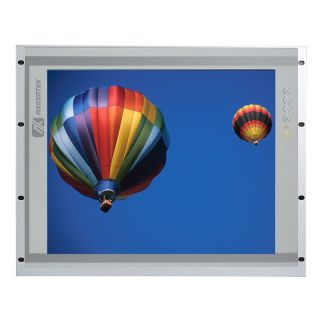

Axiomtek - P6191 - 19" SXGA TFT Industrial Monitor

Levertijd:
2~7 dagen
SKU
P6191

● 19" SXGA TFT LED backlight LCD
● NEMA 4/12 (IP65)- compliant panel mounting flat panel monitor
● Supports panel mount, wall mount, rack mount and VESA arm
● Resistive touchscreen
● Supports full range screw-type AC-in or 12V/24V DC-in (optional)
● VGA, HDMI and DVI-D with multi-signal inputs





The P6191 is 19-inch ultra-slim industrial touch monitors with IP65-rated front bezel. The feature-rich monitor adopts resistive touchscreen with 250 nits high brightness and energy-saving LED-backlight panel. Designed for flexibility, the P6191 supports multi-signal inputs including DVI-D, VGA and HDMI. These slim and light industrial LCD monitor is designed to fit a wide range of applications. There are also options for USB or RS-232 touch control interface. The compact industrial LCD display supports various mounting ways including panel mount, VESA arm, wall mount, and rackmount. Featuring ultra-slim and light mechanism design, it can be easily deployed in any space-limited environments.

Meer informatie
Art.nr.
P6191
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
NEMA 4/12 (IP65)-compliant, metal front bezel
Mounting
Panel mounting, wall mounting, rackmount or VESA
FPMPMI mounting (video electronics standards association
Flat Panel monitor physical mounting interface)
LCD Panel
Display Type Display 19" TFT SXGA LED
Max. Resolution 1280 x 1024
Max. Colors 16.7M
Active Area (mm) 337.92 x 270.33
Pixel Pitch (mm) 0.264 x 0.264
Response Time 5ms
Backlight Backlight LED backlight
Backlight MTBF 30,000 hrs
Viewing Angle (H/V) 170°/160°
Contrast Ratio 1000 (TYP.)
Brightness (cd/m2) 350 nits
Display Control
OSD (on screen display)
Weergavemodus
VGA 640 x 480 (60 / 72Hz), VGA 640 x 350 (70Hz),
VGA 720 x 400 (70Hz), XGA 1024 x 768 (60/70/75Hz),
SVGA 800 x 600 (60 / 72Hz)
SXGA 1280 x 1024 (60/70/75Hz)
Input Signal
DVI-D
DisplayPort
HDMI
Touchscreen: Serial RS-232 or USB interface
I/O Connector

1 x RS-232 or USB for touchscreen version
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x Screw-type DC power input

Power Adapter
Screw-type external AC/DC power input
Touchscreen
Thickness Resistive: 3.2mm
Light Transmission Resistive: 80%
Power Consumption Resistive: +5V@ 100mA
Touch Life Resistive: 35million touches
Controller interface: RS-232 D-Type 9-pin male connector or USB connector
Grootte
482 x 55 x 380 mm
Weight (net/gross)
6 kg / 7.5 kg
Environmental
Operation temperature: 0°C ~ +50°C
Storage temperature: -20°C ~ +60°C
Relative humidity: 20% ~ 90%, non-condensing
Certification
CE
Axiomtek - P6191 - 19" SXGA TFT Industrial Monitor aanpassen
19" SXGA TFT Industrial Touch Monitor
Aantal
Aantal
Aantal

* Verplichte velden

Uw configuratie
P6191PR-AC-RS-EU - AC Power, Resistive (RS-232) touchscreen
P6191PR-AC-U-EU - AC Power, Resistive (USB) touchscreen
P6191PG-AC-EU - AC Power, Glass (no touch)
P6191PR-DC-RS - 12V/24VDC Power, Resistive (RS-232) touchscreen
P6191PR-DC-U - 12V/24VDC Pow
