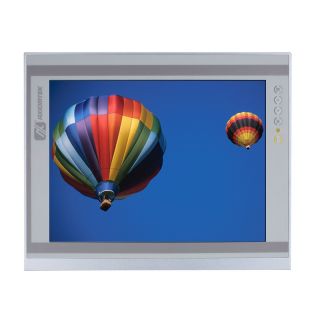

Axiomtek P6121 12" XGA Industrial Monitor

Levertijd:
2~7 dagen
SKU
P6121

● LED backlight LCD
● NEMA 4/12 (IP65)-compliant flat panel monitor
● Supports panel mount, wall mount and VESA arm
● Resistive touchscreen
● Full range screw-type (locked) AC-in or 24V DC-in (option)
● HDMI, DIV-D and VGA with multi-signal inputs


The P6121 is equipped with a 12.1” TFT XGA LED display with 1024 x 768 pixels resolutions and up to 16.7 million colors and supports 500 nits high brightness. It offers USB or RS-232 for touch control interface, and supports multi-signal interfaces including HDMI, DVI-D, and VGA. To fit in various application environments, the 12.1in IP65-rated slim-type touch monitor P6121 supports panel mount, wall mount, rack mount and VESA arm. With only 24.95 mm depth, the feature-rich monitor can be deployed easily in any space-limited place.

Meer informatie
Art.nr.
P6121
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
NEMA 4/12 (IP65)-compliant, metal front bezel
Mounting
Panel mount, wall mount or VESA arm FPMPMI mounting (video electronics standards association flat panel monitor physical mounting interface)
LCD Panel
12" XGA TFT LCD
Max. Resolution 1024 x 768
Max. Colors 16.7M
Active Area (mm) 245.76 x 184.32
Pixel Pitch (mm) 0.24 x 0.24
Response Time 16ms
Backlight LED backlight
Backlight MTBF 30,000 hrs
Viewing Angle (H/V) 160°/140°
Contrast Ratio 700 (TYP.)
Brightness (cd/m2) 500 nits
Display Control
OSD (on screen display)
Weergavemodus
VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),
VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),
XGA 1024 x 768 (60/72/75Hz)
Input Signal
DVI-D
VGA
HDMI
Touchscreen: Serial RS-232 or USB interface
I/O Connector
1 x RS-232 or USB for touchscreen version
1 x DVI-D
1 x VGA
1 x HDMI
1 x Screw-type DC power input
Power Adapter
Screw-type external AC / DC power adapter
Power Consumption 15W
Touchscreen
Thickness Resistive: 3.2 mm
Light Transmission Resistive: 80%
Power Consumption Resistive: +5V @ 100mA
Touch Life Resistive: 35million touches
Controller interface: RS-232 D-type
9pin male connector or USB
Grootte
311.81 mm (12.28") (W) x 54.95 mm (2.16") (H) x 250.31 mm (9.85") (D)
Environmental
Operating temperature: 0°C ~ +55°C (+32°F ~ +131°F)
Relative humidity: 20%~90% @ 40°C, non-condensing
Certification
CE
