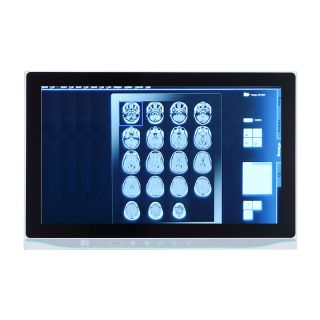

Medical Grade Panel Computer MPC153-834
Levertijd:
3~4 weken
SKU
MPC153-834
15.6" WXGA TFT Medical Grade Fanless Touch Panel Computer with Intel® Celeron® Processor J1900 (up to 2.42 GHz)
● 15.6" WXGA TFT LCD display with LED backlight
● Projected capacitive touch or 5-wire flat resistive touch for optional
● Fanless design with Intel® Celeron® processor J1900 4 cores (up to 2.42 GHz)
● EN 60601-1/CE/FCC class B certified
● Supports half-slim SSD & CFast™ or mSATA
● Supports antimicrobial plastic enclosure
● IP65 front bezel & IPX1 full enclosure
● Supports optional VESA arm/desktop stand/wall mount
● Supports optional smart card reader
The MPC153-834 is a 15.6" Intel® Celeron® based medical grade fanless touch panel computer. In response to market demand, this medical touch panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 15.6" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (BayTrail). For wireless network connection, the MPC153-834 offers 2 mini card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (9~36VDC) with terminal block connector, and the other is AC medical power adapter with screw type connector.
Slim & light design
The 15.6-inch medical panel PC is slim and light weight which makes it fit for limited space installation.
Built-in internal WLAN antenna
The MPC153-834 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the medical computer in wireless LAN/GPRS/GPS/4G environment.
Support front membrane keys
The MPC153-834 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.
Certifications
This 15.6-inch fanless medical panel platform complies with EN60601-1, CE, FCC Class B certifications to ensure medical operation safety.
Meer informatie
Art.nr.
MPC153-834
Fabrikant
Axiomtek
Front Bezel
IP65 front bezel
LCD Panel
| Display Type | 15.6" WXGA TFT LCD LED backlight |
| Brightness (cd/m2 ) | 300 nits |
| Resolution | 1366 x 768 |
Main System
| CPU | Intel® Celeron® processor J1900 4 cores (up to 2.42 GHz) |
| Chipset | Intel® H81 |
| System Memory | 1 x 204-pin DDR3 up to 8 GB |
| Storage | 1 x Half-Slim SATA HDD 1 x CFast™ 1 x mSATA |
BIOS
AMI UEFI BIOS
Watchdog Timer
255 levels, 0~255 sec.
I/O Connector
| COM |
2 x RS-232/422/485 (COM1/2) |
|
1 x RS-232 (COM3 w/ isolated 4KV) |
|
| USB |
2 x USB 3.0 |
| Ethernet |
2 x 10/100/1000Mbps (inteli210IT) |
| Audio |
Line out |
Expansion Interface
1 x Full-size mini PCI express Card with mSATA supported <br>
1 x Full-size mini PCI express Card with SIM slot
1 x Full-size mini PCI express Card with SIM slot
Touchscreen
Projected capacitive multi-touch or 5-wire flat resistive touch
Power Supply
1. AC version: medical grade 100-240V AC-DC 60W power adapter
2. DC version: 9~36VDC with terminal block
Grootte
510 mm (W) x 190 mm (D) x 540 mm (H)
Weight (net/gross)
3.0 kg / 4.5 kg
Environmental
Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)
Storage temperature: 0°C ~ +40°C (-4°F ~ +140°F)
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2G, 10 ~ 500Hz, random for CFast™ card
Certification
CE, FCC class B, EN606011-1
Operating System
Windows 7 Professional
Windows 8.1 Professional
Windows Embedded 7 Standard
Windows Embedded 8 Standard
