EtherCAT Controller

EtherCAT Controller
Axiomtek's EtherCAT controller is verified with IntervalZero EtherCAT Master middleware KingStar which is based on Acontis EtherCAT Master Stack and IntervalZero realtime extension RTX. With well-known Acontis EC-Master, it not only supports CoE, EoE, FoE and SoE enabling seamless integration with servo drives, but also offers Distributed Clocks function support for synchronization of all slave devices.
Desc
per pagina

5 producten

  1. IPC964-512-FL  4-slot Fanless Industrial System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, and Front-access I/O and PCIe/PCI Slots

    4-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    ● LGA1151 Socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
    ● Intel® Q170 chipset
    ● Supports 4 expansion slots
    ● Supports power input: 24VDC (uMin=19V/uMax=30V)
    ● Compact & front I/O design
    ● -10°C to +60°C wide operating temperature range with W.T. SSD
    ● Supports 2 swappable 2.5" HDD
    ● Supports optional WLAN module & antenna



  2. IPC962-512-FL 2-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    2-slot Fanless Barebone System with 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor (up to 3.4 GHz), Intel® Q170 Chipset, PCIe and PCI Slots

    ● LGA1151 Socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
    ● Intel® Q170 chipset
    ● Supports 2 expansion slots
    ● Supports power input: 24VDC (uMin=19V/uMax=30V)
    ● Compact & front I/O design
    ● -10°C to +60°C wide operating temperature range with W.T. SSD
    ● Supports 2 swappable 2.5" HDD
    ● Supports optional WLAN module & antenna

  3. eBOX560-880-FL Front

    Fanless EtherCAT Master Controller with Intel® Core™ i5/i3 & Celeron® Processor

    ● Intel® Celeron® 2980U/Core™ i5 4300U Haswell & Core™ i3 5010U Broadwell ULT SoC
    ● 1 EtherCAT port, 1 GbE LAN port
    ● Verified with IntervalZero EtherCAT solution KingStarIO32
    ● Supports Acontics EtherCAT master stack
    ● Supports IntervalZero Windows real-time extension RTX2012
    ● EtherCAT communication cycle 250 us
    ● Fanless operation design with compact size
    ● 1 RS-232/422/485 and 1 RS-232 port
    ● One 2.5” SATA HDD drive bay and mSATA interface
    ● Supports 1 PCI Express Mini Card slot and 4 USB 3.0 ports
    ● Supports DisplayPort and HDMI dual view







  4. Intelligent Industrial Fanless Embedded eBOX671-885-FL-EtherCAT

    Fanless EtherCAT Master Controller with Intel® Core™ i7/i5 & Celeron® Processor

    ● 4th Generation Intel® Core™ i7/i5/i3 & Celeron® (Haswell and Haswell Refresh) processor with Intel® Q87
    ● 1 EtherCAT port, 1 GbE LAN port
    ● Verified with IntervalZero EtherCAT solution KingStarIO32
    ● Support Acontics EtherCAT master stack
    ● Support IntervalZero Windows real-time extension RTX2012
    ● EtherCAT communication cycle 250 us
    ● I/Os including triple independent display, 4 COM, 2 GbE LAN, 6 USB 3.0, 2 USB 2.0
    ● 4 PoE for Vision application
    ● Wide operation temperature -20°C ~50°C

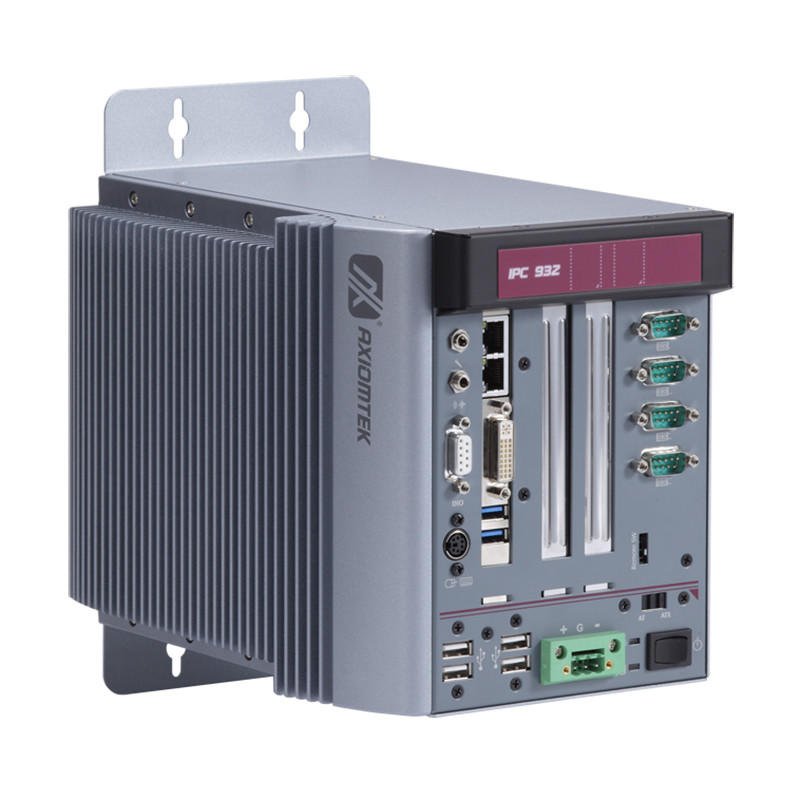

  5. IPC932-230-FL-ECM EtherCAT Master Controller

    Fanless EtherCAT Master Controller with 4th Generation Intel® Core™ i7/i5/i3 & Celeron® processors up to 3.3 GHz (Codename Haswell/Haswell Refresh), Intel® Q87 Chipset, PCIe and PCI Slots

    ● 4th Generation Intel® Core™ i7/i5/i3 & Celeron® processor
    ● 1 EtherCAT port, 1 GbE LAN port
    ● Verified with IntervalZero EtherCAT solution KingStarIO32
    ● Support Acontics EtherCAT master stack
    ● Support IntervalZero Windows real-time extension RTX2012
    ● EtherCAT communication cycle 250 us
    ● Wide operation temperature -10°C to 50°C
