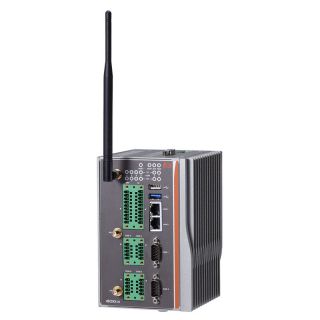

Robust Din-rail Fanless Embedded System - rBOX510-6COM
Levertijd:
2~7 dagen
SKU
rBOX510-6COM
Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor E3827 (1.75 GHz), 6 COM, SATA SSD, DIO, 2 GbE LANs and RTC
● Fanless and cableless design
● Supports Intel® Atom™ processor E3827 (1.75GHz) Dual Core
● Wide temperature operation of -40°C ~ +70°C
● 4 isolated RS-232/422/485 ports & 2 RS-232/422/485 ports
● 2 isolated 10/100/1000Mbps Ethernet
● 2 watchdog timer
● RTC Battery function
● LED indicators
● 3 wireless (3G/GPRS & Wifi)
● SNMP V1/V2c
● Supports 1 x 2.5" SATA SSD (or HDD)
● Supports one 2.5” SATA SSD/HDD (or mSATA) and CompactFlash™
● Wide range 12-48 VDC-In with terminal block
● Supports AXView 2.0 intelligent embedded monitoring software solution for IoT
The rBOX510-6COM, din-rail fanless embedded PC supports the Intel® Atom™ dual-core processor E3827 with 1.75GHz and onboard 4GB DDR3L system memory. The superior rBOX510-6COM features full rugged industrial designs: dual isolated Gigabit LANs, four isolated RS-232/422/485 ports, two RS-232/422/485 ports, one isolated DIO (8-IN/8-OUT) port, front-facing LED indicators, wide range 12- 48VDC power input with terminal block, and three full-sized Mini cards for 3G/GPRS/Wi-Fi connections. The compact fanless din-rail rugged box PC is designed to operate in a wide temperature ranging from -40°C to +70°C and easy to install and maintain. The smart embedded platform is excellent for space concerned, remote, IoT/M2M, and harsh environments such as power plant, outdoor electricity distribution system, gas station, refinery, mine control room, and any other mission-critical applications.
Meer informatie
Art.nr.
rBOX510-6COM
Fabrikant
Axiomtek
Standard Color
Silver-Black
Construction
Extruded aluminum and heary-duty steel, IP30
CPU
Intel® Atom™ Processor E3827 (1.75GHz) Dual Core
System Memory
4GB DDR3L onboard
System I/O Outlet
| Serial Port | 2 x RS232/422/485 (COM1~2, w/o Isolation), 4 x RS232/422/485 (COM3~6, default w/Isolation) Interface select by software or BIOS Supports Auto Flow Control in RS-485 mode ESD protection 15 KV Magnetic isolation protection 2KV COM 1 & COM 2 speed up to 115.2kbps COM 3 ~ COM 6 serial port speed up to 921.6kbps |
| USB | 1 x USB 3.0 1 x USB 2.0 USB power distribution control by software |
| RTC |
Battery onboard & Gold capacity onboard (1st backup battery when power shut-down) |
| Storage |
1 x 2.5" SATA SSD/HDD (default) or 1 x mSATA (by BIOS selectable) |
| LAN |
2 x10/100/1000 Ethernet Magnetic isolation protection 1.5KV |
| VGA |
1 x DB15 connector |
| Power Input |
1 x DC power input with terminal block |
| Wireless |
3 x Full size Mini Card slot supports 3G/GPRS and Wi-Fi |
| DIO |
1 isolated DIO (8-IN/ 8-OUT) |
Watchdog Timer
2 WDT
WDT 1 : one step is 1 sec, 255 levels
WDT 2 : one step is 1 sec/1 min, 255 levels
WDT 1 : one step is 1 sec, 255 levels
WDT 2 : one step is 1 sec/1 min, 255 levels
System Indicator
Power, Alarm, Ready/Active, COM, Wireless
Installation
Din-rail, wall mount
Power Supply
12~48V DC-In;±10 %
DC Version: OVP, UVP, Reverse protection
DC Version: OVP, UVP, Reverse protection
Operating Temperature
-40°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Humidity
10% ~ 95%
Gewicht
1.5 kg / 1.88 kg
Grootte
100.6 mm (W) x 110 mm (D) x 135 mm (H)
EOS Support
Windows 7 Embedded
Windows 8 Embedded
Linux support package
Windows 8 Embedded
Linux support package
ISO
Manufactured in an ISO9001 facility
Safety
UL508
UL60950-1
EN60950-1
IEC60950-1
UL60950-1
EN60950-1
IEC60950-1
EMI
UL60950-1
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
EMS Compliance
Heavy Industrial CE, including:
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
*1400~2000 MHz, 3 V/m, 80% AM (1 kHz)
*2000~2700 MHz, 1 V/m, 80% AM (1 kHz)
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
*1400~2000 MHz, 3 V/m, 80% AM (1 kHz)
*2000~2700 MHz, 1 V/m, 80% AM (1 kHz)
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
Environmental Test Compliance
IEC60068-2-6 Fc (vibration resistance)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock pulse; operation); 50 g @ 11 ms (half-sine shock pulse; storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock pulse; operation); 50 g @ 11 ms (half-sine shock pulse; storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
