Robust ATEX Din-rail Fanless Embedded System

Levertijd:
2~7 dagen
SKU
rBOX10-6COM-ATEX

ATEX & CID2 Anti-Explosive Certified Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor E3827 (1.75GHz)

● Fanless and cableless design
● Supports Intel® Atom™ processor E3827 (1.75GHz) Dual Core
● Wide temperature operation of -40°C ~ +70°C
● 4 isolated RS-232/422/485 ports & 2 RS-232/422/485 ports
● 2 isolated 10/100/1000Mbps Ethernet
● 2 watchdog timer
● RTC Battery function
● LED indicators
● ATEX & CID2 anti-explosive certification
● Supports one 2.5” SATA SSD/HDD (or mSATA) and CompactFlash™
● Wide range 12-48 VDC-In with terminal block
● Supports AXView 2.0 intelligent embedded monitoring software solution for IoT


The rBOX510-6COM(ATEX/C1D2) robust din-rail fanless embedded system is certified with ATEX and C1D2 for use in hazardous environments where ignitable concentrations of flammable gases, vapors or liquids might exist. The embedded system supports the dual-core Intel® Atom™ processor E3827 1.75GHz SoC with the onboard 4GB DDR3L system memory. The din-rail heavy-duty embedded PC adopts an IP30-rated aluminum and steel enclosure, and can perform in wide temperatures ranging from -40°C to +70°C. To prevent ESD and over-voltage, the compact embedded box PC is equipped with four isolated RS-232/422/485 ports, two isolated 10/100/1000Mbps Ethernet ports, and one isolated DIO (8-IN/8-OUT) port. One 2.5" SATA SSD and one CompactFlash™ socket are available for storage.
 More I/O features include one USB 3.0 port, one USB 2.0 port, two COM ports, and one VGA output. In addition, box PC comes equipped with a wide range 12 - 48VDC power input with a terminal block and has overvoltage and reverse protection. The box PC provides two watchdog timers and RTC battery function. Pre-installed with Linux, Windows® 8 Embedded and Windows® 7 Embedded, the embedded system provides programmers with a friendly environment for developing application software at a lower cost. For secure mounting, the rBOX510-6COM(ATEX/C1D2) can be easily installed on a DIN-rail mount or in an enclosure box.

Meer informatie
Art.nr.
rBOX10-6COM-ATEX
Fabrikant
Axiomtek
Standard Color
Silver-Black
Construction
Extruded aluminum and heary-duty steel, IP30
CPU
Intel® Atom™ Processor E3827 (1.75GHz) Dual Core
System Memory
4GB DDR3L onboard
System I/O Outlet
Serial Port 2 x RS-232/422/485
4 x isolated RS-232/422/485
USB 1 x USB 3.0
1 x USB 2.0
RTC

Battery onboard & Gold capacity onboard (1st backup battery when power shut-down)

Storage

1 x 2.5" SATA SSD/HDD (default) or 1 x mSATA (by BIOS selectable)
1 x CompactFlash™ (easy-to-acess)

LAN

2 x isolated 10/100/1000Mbps (Intel® i210IT)

VGA

1 x DB15 connector

Power Input

1 x DC power input with terminal block

Wireless

N/A

DIO

1 isolated DIO (8-IN/ 8-OUT)

Watchdog Timer
2 WDT
WDT 1 : one step is 1 sec, 255 levels
WDT 2 : one step is 1 sec/1 min, 255 levels
Storage
1 x CompactFlash™ 1 x 2.5" SATA SSD (or 1 X mSATA)
Installation
Din-rail, wall mount
Power Supply
12~48V DC-In;±10 %
DC Version: OVP, UVP, Reverse protection
Operating Temperature
-40°C ~ +70°C
Humidity
10% ~ 95%
Gewicht
1.5 kg / 1.88 kg
Grootte
100.6 mm (W) x 110 mm (D) x 135 mm (H)
EOS Support
Windows 7 Embedded
Windows 8 Embedded
Linux support package
ISO
Manufactured in an ISO9001 facility
Safety
UL508
UL60950-1
EN60950-1
IEC60950-1
EMI
UL60950-1
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
EMS Compliance
Heavy Industrial CE, including:
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
*1400~2000 MHz, 3 V/m, 80% AM (1 kHz)
*2000~2700 MHz, 1 V/m, 80% AM (1 kHz)
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
Environmental Test Compliance
IEC60068-2-6 Fc (vibration resistance)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock pulse; operation); 50 g @ 11 ms (half-sine shock pulse; storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
Certification
ATEX<br>
C1D2<br>
Heavy Industrial CE<br>
FCC Part 18<br>
EN50121-4 (Railway application)<br>
UL60950-1<br>
Robust ATEX Din-rail Fanless Embedded System aanpassen
Robust Din-rail fanless embedded system with Intel® Atom™ E3827 1.75 processor dual core and 6 COM ports (-40°C ~ +70°C)
Aantal

* Verplichte velden

Uw configuratie

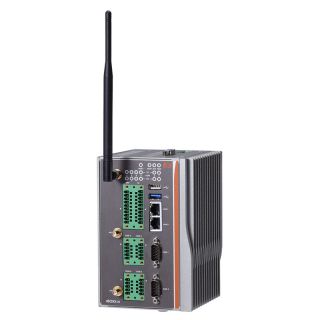

rBOX510-6COM - Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor E3827 (1.75 GHz), 6 COM, SATA SSD, DIO, 2 GbE LANs and RTC
