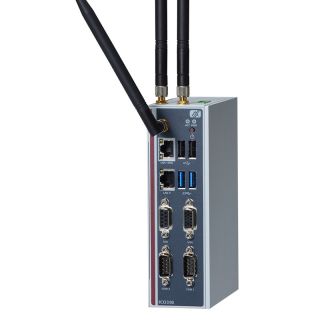

Axiomtek ICO310 DIN-rail Fanless Embedded System

Levertijd:
Uit voorraad leverbaar
SKU
ICO310

Robust DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3060/N3160, 2 COM, 4 USB, 2 GbE LANs (1 PoE PD), DIO and RTC

● Fanless design
● Intel® Celeron® processor N3060 (1.6 GHz/2-core) or N3160 (1.6 GHz/4-core)
● 2 RS-232/422/485 ports
● 4 USB ports
● 2 isolated 10/100/1000 Mbps Ethernet ports
● 1 PoE PD compliant with IEEE 802.3at standard through LAN 1
● 1 DIO port
● Supports wireless (3G/GPRS & Wi-Fi)
● 1 mSATA & SATA SSD (or HDD)
● 12-24 VDC wide range power input

The ICO310, a robust din-rail IIoT (Industrial IoT) embedded platform, supports low power Braswell Intel® Celeron® processor N3060 1.6 GHz dual-core or N3160 1.6 GHz quad-core with up to 8GB DDR3L system memory, delivering high performance and low power consumption at competitive price.
The outstanding Braswell Intel® Celeron® SoC-based embedded field controller offers complete expandability and full featured I/O, including two Gigabit LAN ports, two RS-232/422/485 ports, two USB 2.0 ports, two USB 3.0 ports, one VGA port, and one DIO interface. Two PCI Express Mini Card slots, one SIM card slot and three internal antennas are available for 3G/GPRS and Wi-Fi connections. Furthermore, the ICO310 features PoE PD function, which can simplify network installation and minimize the total costs of replacement and maintenance. Its storage interfaces include an SATA SDD, as well as mSATA support on the PCI Express Mini Card slot.
Additionally, the wide range 12V-24V DC terminal block power input with overvoltage and reverse protection can lower the risk of data loss under human manipulation. The reliable yet robust ICO310 is a perfect solution for industrial IoT applications such as smart energy, smart factory automation, facility monitoring systems and many more.

Meer informatie
Art.nr.
ICO310
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
White
Construction
Extruded aluminum and heavy-duty steel, IP40
CPU
Intel® Celeron® processor N3060 (1.6 GHz/2-core) or N3160 (1.6 GHz/4-core)
System Board
SBC87887
System Memory
1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS
AMI UEFI BIOS
System I/O Outlet
Serial Port
2 x RS-232/422/485 (COM 1/2) with DB9 connectors
Interface select by BIOS Supports Auto Flow Control in RS-485 mode
USB
2 x USB 3.0
2 x USB 2.0
RTC
Battery onboard
Storage
1 x mSATA
1 x SATA SSD (or HDD)
LAN
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
1 x PoE PD compliant with IEEE 802.3at standard through LAN 1 (ICO310-N3060PD-DC, ICO310-N3160-PD-DC) Power Input
DC terminal block: 12 ~ 24V DC-In
PoE: IEEE 802.3at
Display
VGA
Wireless
2 x full-size PCI Express Mini Card slots
1 x SIM socket
3 x Antenna(PS: one of Mini Card slots co-lay mSATA, supports either mSATA or full size PCI Express Mini Card)
DIO
1 x DIO
- DB9 8-bit programming connector
- The voltage of TTL is 5V
- Without isolation function
- The programming is as follow:
1. I/O sink current is 8 ~ 10mA (Output drive current ±50 mA)
2. Input/Output can programming
Watchdog Timer
255 levels, 1 ~ 255 sec.
System Indicator
Power, active, COMs (TX/RX)
Power Supply
Power Input Range: 12 ~ 24 V DC
Power Input Rating: 12 ~ 24 VDC, 2.09 ~ 1.09A
Power Protection:
DC Version
OVP, Reverse protection
Operating Temperature
-20°C ~ +60°C
*The frequency of CPU will down when system operating temperature over +55°C (ICO310-N3060, ICO310-N3060-PD, ICO310-N3160) or over +50°C (ICO310-N3160-PD)
Humidity
10% ~ 95%
Gewicht
1.0kg
Grootte
48 mm (W) x 110 mm (D) x 155 mm (H)
EOS Support
Windows® 7 Embedded
Windows® 10 IoT
Linux support package
Certification
CE,FCC
