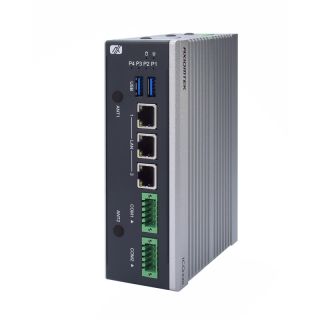

Axiomtek Fanless DIN-Rail ICO330
Levertijd:
4~5 weken
SKU
ICO330
DIN-Rail Fanless Embedded System with Intel Atom® x6212RE or x6414RE Processor, 3 2.5GbE LAN, Isolated COM, and Isolated DIO
● Cost-effective with fanless design
● Intel Atom® x6212RE or x6414RE processor
● 6 isolated COM, isolated DIO (8-in/8-out), 3 2.5 GbE LAN
● Wide operating temperature range from -40°C to +70°C
● 9 to 36V DC, typical 12-24V power input with OVP, UVP, OCP, RPP
● Supports TPM 2.0
● Supports cold boot at -40°C
Low Power and Rugged Design
The ICO330 is powered by the Intel Atom® x6212RE or x6414RE processor. Featuring an extended operating temperature range of -40°C to +70°C, 9V - 36V DC wide power input or typical 12/24V, the robust gateway is ideal for data collection and communication.
Modular I/O Design

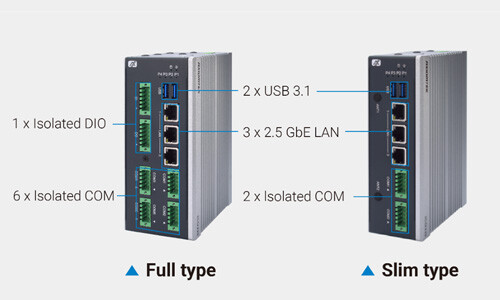

The ICO330 presents high flexibility and full/slim configuration options. The ICO330 provides one isolated DIO and six isolated COM ports (RS-232/422/485) in full type. Meanwhile, customers can also choose the slim type ICO330 with two isolated COM ports.
Addressing Any Environmental Requirements in the OT Field
Axiomtek’s ICO330 provides built-in isolated system design and modular mechanism design, which addresses 80% of the environmental requirements in the OT field, reducing the integration time for customers. Meanwhile, it also minimizes the cost and system size resulting in significant savings for customers.
Great Memory and Storage Capacity
The IP40-rated ICO330 comes with one DDR4-3200 SO-DIMM with up to 32GB of memory. Moreover, one mSATA, one internal 2.5" SATA drive, and onboard 8G eMMC are available for extensive storage needs.
Rich Extension Interfaces

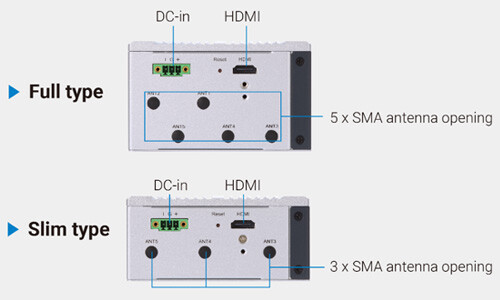

The ICO330 has an M.2 slot (USB 3.0/PCIe) for 5G connectivity and NVMe storage, a full-size Rev. 1.2 PCI Express Mini Card slot (USB/PCIe) for Wi-Fi/LTE, and a half-size Rev. 1.2 PCI Express Mini Card slot (mSATA/USB) for wireless module and mSATA SSD.
Meer informatie
Art.nr.
ICO330
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Documenten
