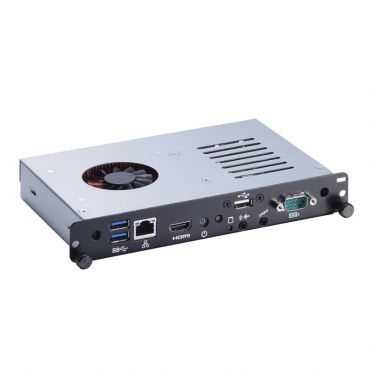

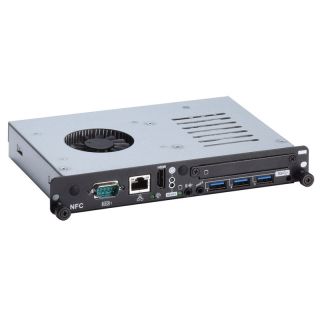

Digital Signage System OPS882-HM
4th Generation Intel® Core™ i5 processor IPSS/OPS Digital Signage Player with Intel® HM86, 4K2K and AVB (Audio Video Bridging) 802.1AS.
● Open Pluggable Specification (OPS) compliance
● Supports 4th Gen Intel® Core™ i5 processor (Haswell)
● Intel® HM86 chipset
● 2 x DD3L SO-DIMM 1600 max. up to 16 GB
● Supports 3 USB 3.0 ports
● 2 PCI Express Mini Card
● HDMI for 2nd display
● Supports 4K resolution
● Supports TPM 1.2
● Supports AVB (Audio Video Bridging) feature
●NFC (tag) feature (optional)
The OPS882-HM is Intelligent Pluggable Systems Specification (IPSS) compliant digital signage player with 4K support.
The high-performing OPS882-HM adopts the 4th Generation Intel® Core™ i5 processor with the Mobile Intel® HM86 Express chipset.
To enhance audio and video quality, the OPS882-HM supports Audio Video Bridging (AVB) which audio and video data can be transported in real time at the highest quality with a high-speed Ethernet connection.
The OPS882-HM also supports Near-field Communication (NFC) to extend the reach of digital signage beyond its physical location and make it mobile and more actionable. Additionally, it features Intel® Retail Client Manager (Intel® RCM), a software solution that provides easy-to-use digital signage content management system with analytics. The OPS882-HM is excellent for various display applications in shopping mall, corporate, education, bank, transportation, retail store, restaurant, performing art center.
CPU
Supports 4th Gen Intel®Core™ i5 processors onboard (Haswell)
Chipset
Intel® HM87 PCH
System Memory
2 x 204-pin DDR3L SO-DIMM 1600 max. up to 16 GB
Storage
1 x 2.5 SATA HDD tray
Watchdog
Timer 255 levels, 1 ~ 255 sec.

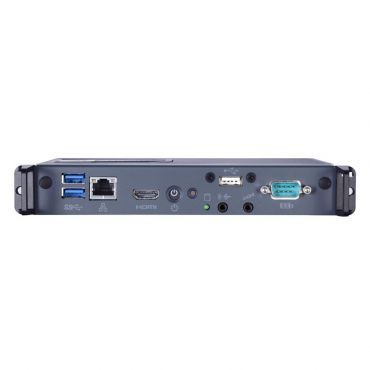

3 x USB 3.0
1 x 10/100/1000Mbps Ethernet (Intel®
I210, supports AVB feature)
1 x HDMI
1 x RS-232 (COM2)
1 x power on/off button
1 x reset button
1 x Audio (Line out)
1 x Audio (Mic in)
1 x Display Port (via OPS JAE interconnector) (Pure DP)
2 x USB 2.0 (via OPS JAE interconnector)
1x USB 3.0 (via OPS JAE interconnector)
1 x Audio (Line out, via OPS JAE interconnector)
1 x UART (TX/RX, via OPS JAE interconnector)(COM1)
Operation Temperature 0°C ~ +45°C (With airflow 1.2m/s)
Windows® 7
Windows® 8.1
