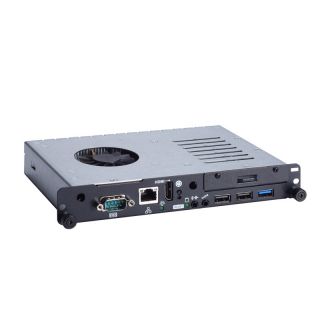

Digital Signage System OPS883-H
4th Generation Intel® Core™ i7/i5/i3 processor Open Pluggable Specification (OPS) Digital Signage Player with Intel® H81 Chipset and TPM 1.2
● Intel® Open Pluggable Specification (OPS) compliance
● 4th Generation Intel® Core™ i7/i5/i3 processor (Haswell Refresh)
● Supports DDR3 SO-DIMM 1600 max. up to 8 GB
● Supports 1 PCI Express Mini Card
● Supports 4K resolution
● Supports TPM 1.2
● Easy Installation and maintenance
● HDMI for 2nd display
The OPS883-H OPS-compliant digital signage player is powered by the 4th generation Intel® Core™ i7/i5/i3 processor (codename: Haswell) with the Intel® H81 chipset.
It has one 204-pin DDR3 SO-DIMM socket with maximum up to 8 GB.
It offers stunning 4K Ultra High Definition (UHD) content via a HDMI port. The Intel® Core-based OPS883-H is ideal for multi-display applications in airport information board, shopping mall, corporate, education, hospitality, religious organization, bank, retail store, restaurant, performing art center and many more. This smart pluggable signage module is connected to OPS-compliant display via a standardized JAE TX-25 plug connector, and includes DisplayPort, UART, audio, USB 3.0 and USB 2.0 signals.
To fill different application needs, the signage unit reserves a wide choice of I/O ports on front panel, including one USB 3.0 ports, two USB 2.0 ports, one COM port, audio (in/out) and a Gigabit Ethernet port. This slim-type OPS system has one internal PCI Express Mini Card slot to connect Wi-Fi or 3G/ LTE modules to satisfied users wireless needs. It features one easy-to-access 2.5” SATA HDD as storage device. Also, it supports TPM 1.2 feature which is designed to secure system.
CPU
Socket LGA1150 4th Generation Intel® Core™ i7/i5/i3 & Celeron® processor
Chipset
Intel® H81
System Memory
1 x 204 pin DDR3 SO-DIMM 1600 max. up to 8 GB
Storage
1 x 2.5 SATA HDD tray
Watchdog
Timer 255 levels, 1 ~ 255 sec.
2 x USB 2.0
1 x USB 3.0
1 x 10/100/1000Mbps Ethernet
1 x HDMI with 4K Resolution
1 x RS-232 (COM2)
1 x power on/off button
1 x reset button
1 x Audio (Line-out)
1 x Audio (Mic-in)
1 x Display Port (via OPS JAE interconnector)
2 x USB 2.0 (via OPS JAE interconnector)
1 x USB 3.0 (via OPS JAE interconnector)
1 x Audio (Line out, via OPS JAE interconnector)
1 x UART (TX/RX, via OPS JAE interconnector) (COM1)
Operation Temperature 0°C ~ +45°C (With airflow 1.2m/s)
Windows® 7
Windows® 8.1
