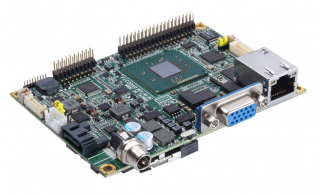

Axiomtek PICO842

Levertijd:

2~7 dagen

SKU

PICO842

Intel® Celeron® Processor J1900/N2807 Pico-ITX SBC with LVDS/VGA (HDMI), LAN & Audio

● Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz) (Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported

Brochure EN

Details

The PICO842, an extreme-compact fanless pico-ITX motherboard, is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (codename: ). Its system memory supports up to 8GB of DDR3L. The extreme compact-size fanless embedded board supports dual display outputs through HDMI or VGA, and 18/24-bit single/dual channel LVDS.
With improved media and graphics performance, the Axiomtek PICO842 is suitable for any graphics, imaging, and video intensive application. Its ultra slim size also makes it perfectly suitable for IoT, medical, automation, and embedded systems.

SPECIFICATIES

Meer informatie

Art.nr.

PICO842

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Systeem

CPU	Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz)
System Memory	1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8GB
Chipset	SoC integrated
BIOS	AMI
SSD	N/A
Watchdog Timer	255 levels, 1~255 sec.
Expansion Interface	1 x Full-Size Mini PCI Express Mini Card with mSATA
Battery	Lithium 3V/ 220mAH
Power Input	DC power jack connector +12V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Celeron® J1900 @ 8GB DDR3L Max. RMS. +12V @ 0.9A Intel® Celeron® N2807 @ 8GB DDR3L Max. RMS. +12V @ 0.7A
Size	100 x 72mm
Board Thickness	1.6mm
Operation Temperature	-20°C ~ +70°C, operation
Humidity	10% ~ 95% relative humidity, non-condensing

MIO	2 x RS-232/422/485
SATA	1 x SATA-300
Hardware Monitoring	Detect CPU/System temperature and voltage
Ethernet	1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i211AT
Audio	HD Codec audio as MIC-in/Line-out with Realtek ALC662
USB	4 x USB 2.0
SMBus	System Management Bus for advanced monitoring/control
Digital I/O	N/A
TPM	ST ST33TPM12LPC with TPM 1.2 compliant

Weergave

Chipset	integrated Gfx graphic engine
Memory Size	Share system memory
Display Interface	1 x VGA or 1 x HDMI 1 x LVDS; 18/24-bit single/dual channel

Samenstellen

Axiomtek PICO842 aanpassen

PICO842:

Pico-ITX SBC with Intel® Atom™ processor E3845 1.91GHz and VGA/LVDS, 1 GE, Audio and Gift Box

Pico-ITX SBC with Intel® Celeron® processor N2807 1.58 GHz, VGA/LVDS, 1GE, Audio and gift box

Pico-ITX SBC with Intel® Celeron® processor J1900 2.0 GHz, HDMI/LVDS, 1GE, Audio and gift box

Pico-ITX SBC with Intel® Celeron® processor N2807 1.58 GHz, HDMI/LVDS, 1GE, Audio and gift box

Aantal

Optioneel:

USB CABLE 20x2P P=2.0 mm L=200mm

AUDIO CABLE 20x2P P=2.0 mm L=200mm

Power/Reset button + LED CABLE

COM CABLE 10x2P P=2.0 mm L=200mm

USB+AUDIO+LED CABLE L=200mm

* Verplichte velden

Uw configuratie
