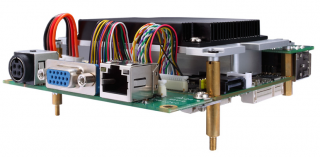

Axiomtek PICO841

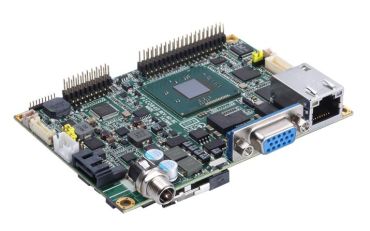

Intel® Atom™ Processor E3845/E3827 Pico-ITX SBC with LVDS/ VGA, LAN and Audio
● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)(Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported
The PICO841, an extreme compact embedded pico-ITX motherboard, is designed to support the latest 22nm quad cores Intel® Atom™ processor E3845 or dual cores E3827 (codename: Bay Trail) with one DDR3L system memory maximum up to 8 GB. With its compact size and ultra-low power consumption, it is perfect for space-limited and power saving environments. Otherwise, the energy-efficient embedded board is built to withstand wide temperature conditions, ranging from -20°C to +70°C.
Integrated with Intel® HD graphic engine, the PICO841 supporting VGA and 18/24-bit dual channel LVDS in dual-view provides faster and better graphic performance. Furthermore, to increase the connectivity and reliability, the rich feature of I/O interfaces are integrated to allow flexible cabling. Coming with two PCI Express Mini Card sockets, the pico-ITX mainboard offers excellent extensibility.
| CPU |
Intel® Atom™ processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard (Bay Trail) |
| System Memory | 1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8GB |
| Chipset | SoC integrated |
| BIOS | AMI |
| SSD | N/A |
| Watchdog Timer | 255 levels, 1~255 sec. |
| Expansion Interface |
1 x Full-Size Mini PCI Express Mini Card with mSATA |
| Battery | Lithium 3V/ 220mAH |
| Power Input |
DC power jack connector |
| Power Requirements |
Intel® Atom™ E3845 @ 1.91 GHz, 8 GB DDR3L |
| Size | 100 x 72mm |
| Board Thickness | 1.6mm |
| Operation Temperature | -40°C ~ +70°C, operation |
| Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO | 2 x RS-232/422/485 |
| SATA | 1 x SATA-300 |
| Hardware Monitoring | Detect CPU/System temperature and voltage |
| Ethernet |
1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel i210IT |
| Audio | HD Codec audio as MIC-in/Line-out with Realtek ALC662 |
| USB | 4 x USB 2.0 |
| SMBus | System Management Bus for advanced monitoring/control |
| Digital I/O | N/A |
| TPM | ST ST33TPM12LPC with TPM 1.2 compliant |
| Chipset |
Intel® HD Graphics |
| Memory Size | Share system memory |
| Display Interface |
1 x VGA |
