Axiomtek PICO840

Levertijd:
2~7 dagen
SKU
PICO840

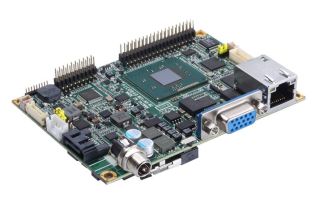

Intel® Atom™ Processor E3845/E3827 Pico-ITX SBC with LVDS/ VGA (HDMI), LAN and Audio

● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)(Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported



The PICO840 ultra-small Pico-ITX embedded SBC supports the quad-core Intel® Atom™ processor (code name: Bay Trail-I) and supporting DDR3L-1066/1333 MHz system memory up to 8 GB. Considering different environments, this industrial grade Pico-ITX mainboard is built to withstand extreme temperature, ranging from -40°C to +70°C.
Moreover, with superior integration and power efficiency, this compact size single board computer enables system developers and OEMs to create smaller, lighter, quieter devices than ever and embrace the new possibilities across POS systems, mobile medical monitor, compact panel PCs as well as multiple embedded computer, system and appliance segments.

Meer informatie
Art.nr.
PICO840
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Systeem
CPU

Intel® Atom™ processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard (Bay Trail)

System Memory 1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8GB
Chipset SoC integrated
BIOS AMI
SSD N/A
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface

1 x Full-Size Mini PCI Express Mini Card with mSATA

Battery Lithium 3V/ 220mAH
Power Input

DC power jack connector
+12V DC-in only
AT Auto Power On function supported

Power Requirements

Intel® Atom™ E3845 @ 1.91 GHz, 8 GB DDR3L
max. RMS: +12V @ 1.33A
Intel® Atom™ E3827 @ 1.75 GHz, 8 GB DDR3L
max. RMS: +12V @ 1.2A

Size 100 x 72mm
Board Thickness 1.6mm
Operation Temperature -40°C ~ +70°C, operation
Humidity 10% ~ 95% relative humidity, non-condensing
IO
MIO 2 x RS-232/422/485
SATA 1 x SATA-300
Hardware Monitoring Detect CPU/System temperature and voltage
Ethernet

1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel i210IT

Audio HD Codec audio as MIC-in/Line-out with Realtek ALC662
USB 4 x USB 2.0
SMBus System Management Bus for advanced monitoring/control
Digital I/O N/A
TPM ST ST33TPM12LPC with TPM 1.2 compliant
Weergave
Chipset

Intel® HD Graphics

Memory Size Share system memory
Display Interface

1 x VGA or 1 x HDMI
1 x LVDS; 18/24-bit single/dual channel
