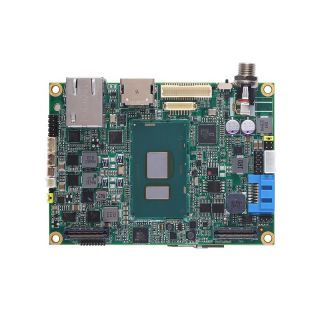

Axiomtek Embedded ITX PICO board - PICO512HG
● 7th Gen Intel® Core™ i7/i5/i3 and Celeron® processor
● 1 DDR4 SO-DIMM, up to 16GB
● 1 PCI Express Mini Card slot
● Intel® AMT 11 supported
The PICO512 is designed to support the latest 7th generation Intel® Core™ processor or Celeron® processor 3965U. Coming with one 260-pin DDR4-2133 SO-DIMM socket supporting system memory up to 16 GB, the Pico-ITX motherboard also features a PCI Express Mini Card slot in support of mSATA and a pair of expansion connectors for an additional I/O board/signals. It supports a 4K visual experience with dual display outputs through HDMI and LVDS. Pico-ITX SBC can withstand a wide operating temperature range from -20°C to +70°C.
CPU
7th gen Intel® i7/i5/i3 & Celeron® processor onboard
System Memory
1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
Chipset
N/A
BIOS
AMI
Watchdog Timer
65535 levels, 1 ~ 65535 sec.
Expansion Interface
1 x full-size PCI Express Mini Card slot with mSATA
1 x PCIe x1,1 x LPC, 1 x DDI, 4 x USB 3.0
1 x HD audio and 1 x SMBus (through expansion connector)
Battery Lithium
Lithium 3V/220mAH Power Input
DC Jack
+12V DC-in only
AT Auto Power On function supported
Power Requirements
Intel® i7-7600U @ 2.8 GHz 16GB DDR4 max. RMS. +12V @ 2.5A
Intel® i5-7300U @ 2.6 GHz 16GB DDR4 max. RMS. +12V @ 2.4A
Intel® i3-7100U @ 2.4 GHz 16GB DDR4 max. RMS. +12V @ 2.2A
Intel® Celeron®-3965U @ 2.2 GHz 16GB DDR4 max. RMS. +12V @ 1.7A
Size
100 x 72 mm
Board Thickness
1.6 mm
Temperature
-20°C ~ +70°C , operation
Relative Humidity
10% ~ 95% relative humidity, non-condensing
MIO
N/A
SATA
1 x SATA-600
Hardware Monitoring
Detect CPU/system temperature, voltage and fan speed
Ethernet
1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i219LM
Audio
N/A
USB
1 x USB 2.0
SMBus/I2C
Yes, for advanced monitoring/control
Digital I/O
8 channels in/out programmable
TPM
ST ST33TPM12LPC with TPM 1.2 compliant
Chipset
Intel® integrated Gfx graphic engine
Memory Size
Share system memory
Display Interface
1 x HDMI
1 x LVDS; 18/24-bit single/dual channel
