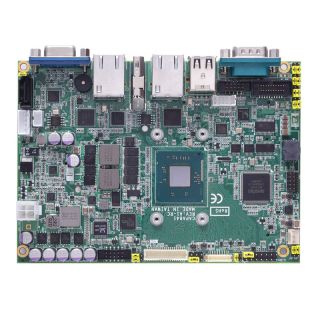

Axiomtek 3.5'' Capa Board CAPA841
Intel® Atom™ Processor E3845/E3827 3.5" Embedded SBC with LVDS/VGA/HDMI,Dual LANs and Audio
● Intel® Atom™ processor E3845 (1.91 GHz)/ E3827 (1.75 GHz)
● 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
● 4 USB 2.0 ports
● 4 COM ports
● 2 PCI Express Mini Card
● 2 Gigabit Ethernet (Intel® i210IT)
● Display: LVDS/VGA/HDMI in dual view
The CAPA841 is equipped with the newest 22nm process Intel® Atom™ processor E3845/E3827 family (formerly codenamed Bay Trail). This system-on-chip (SoC) incorporates up to four cores and supports system memory DDR3L-1066/1333 SO-DIMM maximum up to 8 GB. This small form factor CAPA841 is capable of operating under wide temperatures from -40°C to +75°C in fanless operation, which allows customers to design systems in rugged environments. Moreover, it comes with multiple display outputs: HDMI, LVDS and VGA with dual view supported. With integrated Intel® Gen 7 graphics, up to 792MHz in turbo, visual experiences are enhanced, including faster media processing, full HD over HDMI, spectacular HD playback, and more.
| CPU |
Intel®Atom™ processor E3845 1.91 GHz quad core and E3827 1.75 GHz dual core onboard |
|||
| System Memory | 1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB | |||
| Chipset | N/A | |||
| Bios | AMI | |||
| SSD | 1 x CFast™ | |||
| Watchdog Timer | 255 levels, 1~255 sec. | |||
| Expansion Interface |
1 x Full-Size Mini PCI Express Mini Card w/mSATA supported |
|||
| Battery | Lithium 3V/220mAH | |||
| Power Input |
|
|||
| Power Requirements |
Intel®Atom™ E3845 @ 1.91 GHz, 8 GB DDR3L |
|||
| Dimensions | 146 x 104mm | |||
| Board Thickness | 1.6mm | |||
| Operation Temperature | -40°C ~ +75°C | |||
| Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO |
2 x RS-232/422/485 |
| SATA | 1 x SATA-300 |
| Hardware Monitoring | Detect CPU/system temperature and voltage. |
| Ethernet |
2 x 10/100/1000 Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Intel®i210IT |
| Audio |
HD Codec audio as MIC-in/Line-in/Line-out/Speaker out with Realtek ALC662 |
| USB | 4 x USB 2.0 |
| SMBus | System Management Bus for advanced monitoring/control |
| Digital I/O | 8 channels IN/OUT programmable |
| Chipset |
Intel®HD Graphics |
| Memory Size | Share System Memory |
| Display Interface | 1 x VGA 1 x HDMI 1 x LVDS; 18/24-bit single/dual channel |
