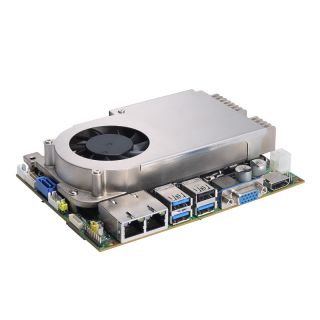

Axiomtek 3.5'' Capa Board CAPA500

Levertijd:

2~7 dagen

SKU

CAPA500

3.5" Embedded SBC with LGA1151 Socket 6th/7th Gen Intel® Core™ i7/i5/i3 Processor, LVDS/ VGA/HDMI, Dual LANs and Audio

● LGA1151 6th/7th gen Intel® Core™ i7/i5/i3 processor (Skylake/Kaby Lake)
● Intel® H110 chipset (Q170 optional)
● 1 DDR4-1867 SO-DIMM, up to 16GB
● 3 USB 3.0 and 3 USB 2.0 ports
● 1 COM port
● Intel® AMT 11 supported (optional)

Brochure EN

Details

The CAPA500 features the LGA1151 socket 7th generation Intel® Core™ processor family (codename: Kaby Lake) with 35W TDP (thermal design power), as well as the Intel® H110 chipset (Q170 optional). The CAPA500 supports one 260-pin DDR4-1867 SO-DIMM with a memory capacity up to 16GB for extensive storage.
The compact 3.5-inch embedded motherboard also offers display outputs through HDMI, VGA and LVDS for triple independent display applications.
Moreover, the compact-sized embedded board runs on +12 VDC power, supporting auto power-on. It can operate at a wide range of temperatures from -20°C to 60°C under active thermal control.
The 146 mm x 104 mm embedded SBC is suitable for IoT/M2M-related, industrial control, self-service terminal, digital signage, POS, kiosk and many other applications where high-speed processing and graphics performance under limited space is required.

SPECIFICATIES

Meer informatie

Art.nr.

CAPA500

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Systeem

CPU

LGA1151 7th/6th generation Intel® Core™ i7/i5/i3 processor (TDP up to 35W)

System Memory

1 x 260-pin SO-DIMM DDR4-1867, up to 16GB

Chipset

Intel® H110
Intel® Q170 (optional)

Bios

AMI

SSD

1 x SATA-600

Watchdog Timer

255 levels, 1~255 sec.

Expansion Interface

1 x Full-size PCI Express Mini Card slot with mSATA supported
1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector (optional)

Battery

Lithium 3V/220mAH

Power Input

2 x 2-pin connector

+12V DC-in only

AT Auto Power ON function supported

Dimensions

146 x 104mm

Board Thickness

1.6mm

Operation Temperature

-20°C ~ +60°C

Humidity

10% ~ 95% relative humidity, non-condensing

MIO	1 x RS-232/422/485 with +5V/12V powered
SATA	1 x SATA-600
Hardware Monitoring	Detect CPU/system temperature voltage and fan speed.
Ethernet	1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i211AT 1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i219LM
Audio	HD Codec audio as MIC-in/Line-in/Line-out/Speaker out with Realtek ALC662
USB	3 x USB 3.0 3 x USB 2.0
SMBus	System Management Bus for advanced monitoring/control
Digital I/O	8 channels IN/OUT programmable

Weergave

Chipset	Intel® integrated Gfx graphic engine
Memory Size	Share System Memory
Display Interface	1 x VGA 1 x HDMI 1 x LVDS; 18/24-bit single/dual channel

Samenstellen

Axiomtek 3.5'' Capa Board CAPA500 aanpassen

Model: CAPA500

3.5" embedded SBC with LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3 processor, Intel® H110 chipset, VGA/LVDS/HDMI, 2 GbE LANs, audio and gift box (P/N: E38E500103)

3.5" embedded SBC with LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3 processor, Intel® Q170 chipset, VGA/LVDS/HDMI, 2 GbE LANs, audio and gift box (P/N: E38E500102)

3.5" embedded SBC with LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3 processor, Intel® H110 chipset, VGA/LVDS/HDMI, 2 GbE LANs, audio and ZIO connector (P/N: E38E500101)

3.5" embedded SBC with LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3 processor, Intel® Q170 chipset, VGA/LVDS/HDMI, 2 GbE LANs, audio and ZIO connector (P/N: E38E500100)

ZIO module:

Geen

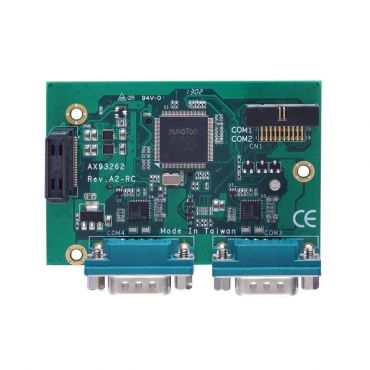

AX93262 ZIO module for 2 RS-232/422/485, 2 RS-232, 1 PCI Express Mini Card slot +

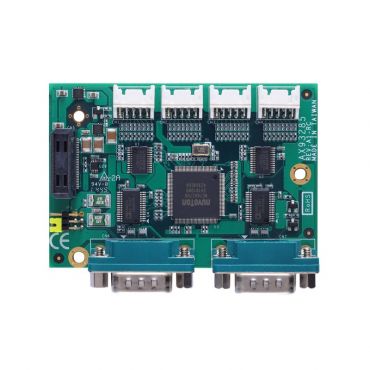

AX93285 ZIO module for 2 RS-232, 32-bit programmable DIO +

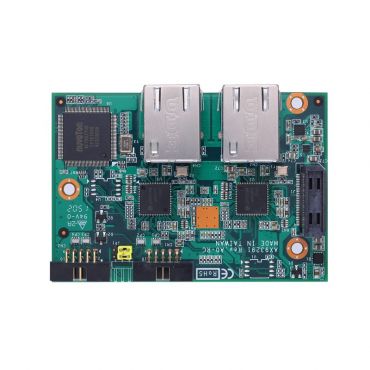

AX93291 ZIO module for 2 RS-232, 2 GbE LAN +

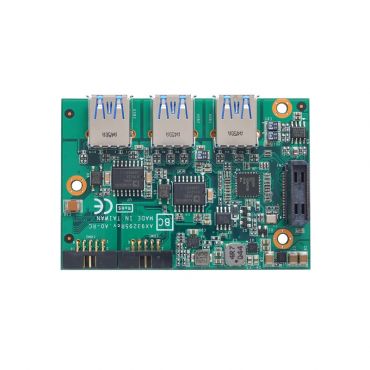

AX93295 ZIO module for 2 isolated RS-232, 2 USB 3.0 +
