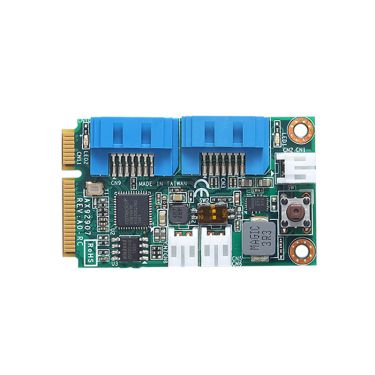

- Full-Size PCI Express Mini Module with SATA - AX92907
Full-Size PCI Express Mini Module with SATA
● 2 independent SATA channels
● Fully compatible with SATA revision 2.0 and 3.0 hard drives (HDD) and Solid State Drives (SSD)
● Supports RAID 0,1
● Two SATA power connectors with +5V

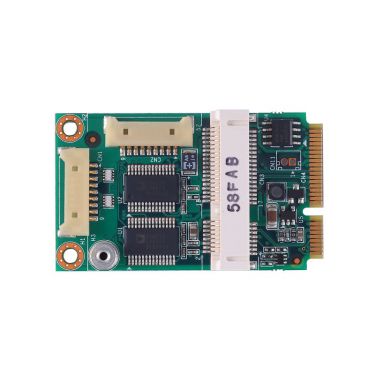

● 51 x 30 mm - Full-Size PCI Express Mini Module with 2x RS232 - AX92906
Full-Size PCI Express Mini Module with COM
● USB to 2 Channel high speed RS-232 ports
● Supports one half-size PCI Express Mini card slot (PCIe only)

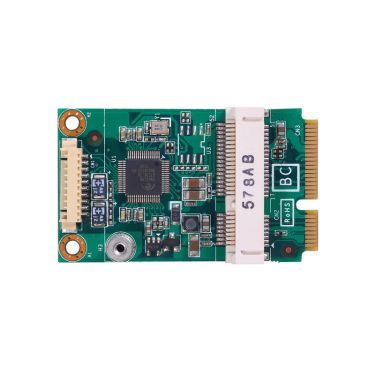

● 51 x 30 mm - Full-Size PCI Express Mini Module with Audio - AX92905Full-Size PCI Express Mini Module with Audio
● USB to Audio as Mic-In/Line-In/Line-Out
● Supports one half-size PCI Express Mini card slot (PCIe only)
● Cmedia CM6510B controller

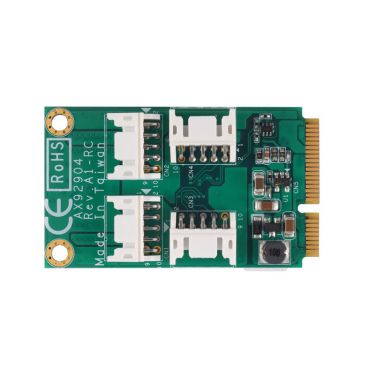

● 51 x 30 mm - Full-Size PCI Express Mini Module with 32 bit DIO - AX92904Full-Size PCI Express Mini Module with 32 bit DIO
● 32 bit programmable DIO
● Supports four 8-bit TTL level DIO ports with +5V powered
● Each bit can be programmable as input or output

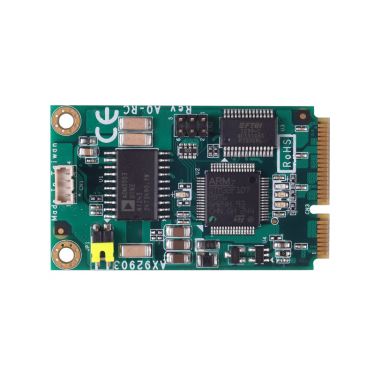

● 51 x 30 mm - Full-Size PCI Express Mini Module with CAN Bus - AX92903
Full-Size PCI Express Mini Module with CAN Bus
● USB to 1 channel CANBus port
● Support CANOpen

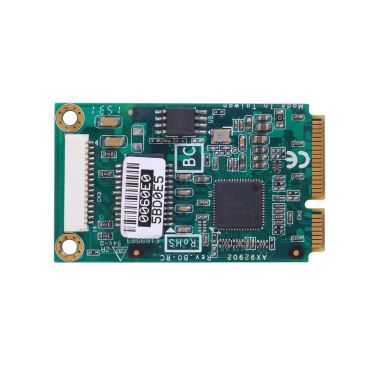

● 51 x 30 mm - Full-Size PCI Express Mini Module with Gigabit LAN - AX92902Full-Size PCI Express Mini Module with Gigabit LAN
● Supports 10/100/1000 Mbps transfer rates
● Supports Wake-on LAN
● Supports PXE Boot ROM
● Intel® i210IT controller
● 51 x 30 mm
