Industrial 4-port CAN bus Switch with Metal casing
● 4 CAN communication ports ● Compatible with CAN specification 2.0A and 2.0B ● Fully compatible with the ISO 11898-2 standard ● Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined ● CAN bus filter is configurable ● 100 data frames buffer for each CAN channel ● Max data flow up to 2500 fps for all CAN channel ● Selectable baud rate by rotary switch ● Selectable 120Ω terminator resistor by DIP switch ● LED for CAN reception and transmission ● Support CAN network with star or tree topology ● Extending the CAN bus distance to expand the CAN network size ● Integrating different CAN network with different baud rate

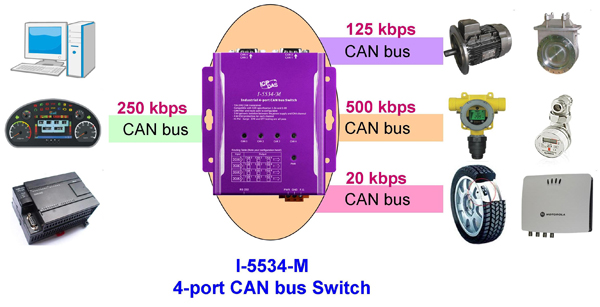

The I-5534-M is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-5534-M integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.
