PCI Memory Boards

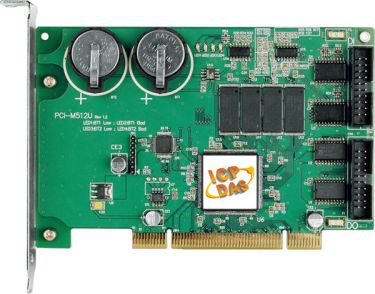

Universal PCI, 512KB Memory Board with DI/DO


● On-board 512K bytes SRAM for PCI-M512/PCI-M512U
● Two Li-batteries, BT1 & BT2, for battery-backup the data of SRAM
● Two indicators, low-battery & bad-battery, for battery BT1
● Another two indicators, low-battery & bad-battery, for battery BT2
● 16-bit general purpose TTL-compatible D/O or relay (with daughter board DB-16R or DB-24PR)
● 12-bit general propose TTL-compatible D/I or isolated input (with daughter board DB-16P)
● PCI-M512U supports 5V and 3.3V PCI bus

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 98/NT/2000
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
