PCI Bus Multifunction Boards

45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board


● The maximum sampling rate of the A/D converter is about 45K samples/sec.
● Software selectable input ranges
● PC/AT compatible PCI bus
● A/D trigger mode: software trigger, pacer trigger, external trigger
● 16 single-ended or 8 differential analog input channels
● Programmable high gain: 1, 10, 100, 1000
● Input range: ±5 V,±0.5 V, ±0.05 V,±0.005 V
● 1 channel 12-bit D/A voltage output
● 16 digital inputs/16 digital outputs (TTL compatible)
● Interrupt handling

45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board


● The maximum sampling rate of the A/D converter is about 45K samples/sec.
● Software selectable input ranges
● PC/AT compatible PCI bus
● A/D trigger mode: software trigger, pacer trigger, external trigger
● 16 single-ended or 8 differential analog input channels
● Programmable low gain: 1, 2, 4, 8
● Input range: ±5 V, ±2.5 V, ±1.25 V, ±0.625 V
● 1 channel 12-bit D/A voltage output
● 16 digital inputs/16 digital outputs (TTL compatible)
● Interrupt handling

Universal PCI, 250 kS/s, 32/16-channel 16-bit Analog Input, 2-channel 16-bit Analog Output and 32-channel Programmable DIO


● Supports both +5 V and +3.3 V PCI bus
● Card ID function
● One A/D converter with maximum 250 k Samples/Sec.
● 16-bit resolution A/D converter
● 8 K samples hardware FIFO
● 32 single-ended/16 differential analog inputs
● Two different A/D trigger: software trigger, pacer trigger
● Programmable gain control, programmable offset control
● 2-channel 16-bit voltage output
● Voltage output range: ±10 V, ±5V, 0 ~ 10 V, 0 ~ 5 V
● 32-channel programmable DI/DO
● Pull high/pull low function on DI
● DO status read back
● High speed data transfer rate

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 2K and 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/VB.NET/C#.NET sample programs with source codes are included

Universal PCI, 250 kS/s, 32/16-channel 12-bit Analog Input, 2-channel16-bit Analog Output and 32-channel Programmable DIO


● Supports both +5 V and +3.3 V PCI bus
● Card ID function
● One A/D converter with maximum 250 k Samples/Sec.
● 12-bit resolution A/D converter
● 8 K samples hardware FIFO
● 32 single-ended/16 differential analog inputs
● Built-in MagicScan Controller
● Interrupt function
● Two different A/D trigger: software trigger, pacer trigger
● Programmable gain control, programmable offset control
● 2-channel 16-bit voltage output
● Voltage output range: ±10 V, ±5V, 0 ~ 10 V, 0 ~ 5 V
● 32-channel programmable DI/DO
● Pull high/pull low function on DI
● DO status read back
● High speed data transfer rate

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 2K and 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/VB.NET/C#.NET sample programs with source codes are included

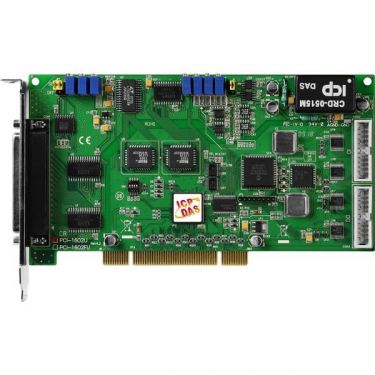

Universal PCI, 32-channel, 16-bit, 200 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)


● Universal PCI interface, supports both +5 V and +3.3 V PCI bus
● Card ID function
● Pull-high/ pull-low resistors for DI
● 16-channels digital Input
● 16-channels digital output
● 2 channels, 12-bit analog output
● 16-bit high resolution, 200 kS/s A/D converter
● 32 single-ended/16 differential analog inputs
● Programmable low gain:1/2/4/8
● Built-in 8 k WORD FIFO
● Built-in MagicScan controller
● Support internal/external trigger
● Three external triggers: post-trigger, pre-trigger, middle-trigger

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

Universal PCI, 32-channel, 16-bit, 100 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)


● Universal PCI interface, supports both +5 V and +3.3 V PCI bus
● Card ID function
● Pull-high/ pull-low resistors for DI
● 16-channels digital Input
● 16-channels digital output
● 2 channels, 12-bit analog output
● 16-bit high resolution, 100 kS/s A/D converter
● 32 single-ended/16 differential analog inputs
● Programmable low gain:1/2/4/8
● Built-in 8 k WORD FIFO
● Built-in MagicScan controller
● Support internal/external trigger
● Three external triggers: post-trigger, pre-trigger, middle-trigger

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

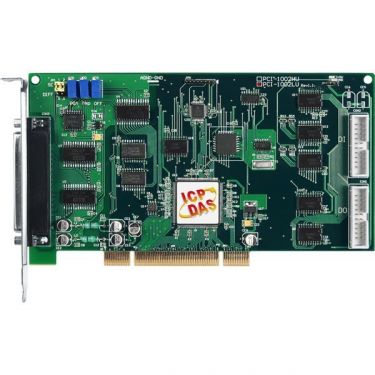

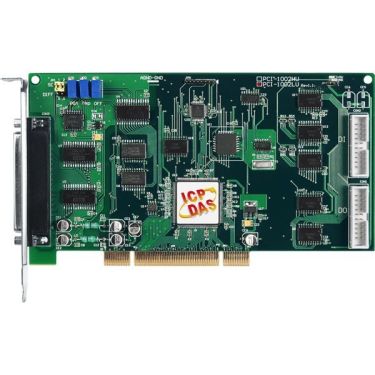

Universal PCI, 32-channel, 12-bit, 110 kS/s Low Gain Multi-function Board


● Universal PCI card, supports both 5 V and 3.3 V PCI bus
● 12-bit resolution, 100 kS/s high-speed AD converter
● 32 single-ended/ 16 differential inputs
● The max. sampling rate is low-gain 110 kS/s
● 16 digital input / 16 digital output channels
● Programmable low gain: 1, 2, 4, 8
● Internal / external trigger
● Half size board
● Digital input port can be set to pull-high or pull-low

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

Universal PCI, 32-channel, 12-bit, 44 kS/s High Gain Multi-function Board


● Universal PCI card, supports both 5 V and 3.3 V PCI bus
● 12-bit resolution, 100 kS/s high-speed AD converter
● 32 single-ended/ 16 differential inputs
● The max. sampling rate is high-gain 44 kS/s
● 16 digital input / 16 digital output channels
● Programmable high gain: 1, 10, 100, 1000
● Internal / external trigger
● Half size board
● Digital input port can be set to pull-high or pull-low

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

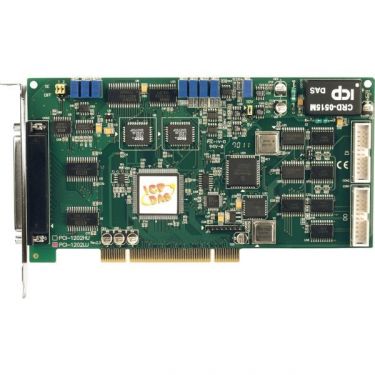

32-channel, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (1 K word FIFO)


● 12-bit 110 kHz A/D converter
● 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
● The total sampling rate is 40 K samples/s for high gain model
● Three external triggers: post-trigger, pre-trigger, middle-trigger
● 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate
● Provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
● Internal / external trigger
● Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)
● Universal PCI card, supports both 5 V and 3.3 V PCI bus
● Digital input port can be set to pull-high or pull-low

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

32-channel, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO)


● 12-bit 110 kHz A/D converter
● 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
● The total sampling rate is 110 K samples/s for low gain model
● Three external triggers: post-trigger, pre-trigger, middle-trigger
● 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate
● Provides programmable low gain: 0.5, 1, 2, 4, 8
● Internal / external trigger
● Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)
● Universal PCI card, supports both 5 V and 3.3 V PCI bus
● Digital input port can be set to pull-high or pull-low

SOFTWARE FEATURES:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

32-channel, 32-bit, 44 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO)


● PCI bus, 5 V, 32-bit, 33 MHz
● 12-bit 330 kHz A/D converter
● AI channels: 32 single-ended/16 differential inputs, 8 K word FIFO buffer
● Up to 330 K samples/s sampling rate
● Programmable low gain: 0.5, 1, 2, 4, 8
● Three different external trigger: post-trigger, pre-trigger, middle trigger
● Internal/external A/D trigger
● 16 digital input/16 digital output channels
● Two 12-bit DA channels, 2 MHz throughput per channel (max.)
● High speed data transfer rate up to 2.7 Mword/sec.
● Half size board

32-channel, 32-bit, 44 kS/s High Gain Multi-function DAQ Board (1 K word FIFO)


● PCI bus, 5 V, 32-bit, 33 MHz
● 12-bit 330 kHz A/D converter
● AI channels: 32 single-ended/16 differential inputs, 8 K word FIFO buffer
● Up to 44 K samples/s sampling rate
● Programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
● Three different external trigger: post-trigger, pre-trigger, middle trigger
● Internal/external A/D trigger
● 16 digital input/16 digital output channels
● Two 12-bit DA channels, 2 MHz throughput per channel (max.)
● High speed data transfer rate up to 2.7 Mword/sec.
● Half size board

32-channel, 12-bit, 330 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)


● 12-bit 330 kHz A/D converter
● AI channels: 32 single-ended/16 differential inputs, 8 K word FIFO buffer
● Up tto 330 K samples/s sampling rate
● Programmable low gain: 0.5, 1, 2, 4, 8
● Three different external trigger: post-trigger, pre-trigger, middle trigger
● Internal/external A/D trigger
● 16 digital input/16 digital output channels
● Two 12-bit DA channels, 2 MHz throughput per channel (max.)
● High speed data transfer rate up to 2.7 Mword/sec.
● DB-889D and DB-1825 accessories for expanding channels
● Half size board
● Universal PCI interface supports both 5 V and 3.3 V PCI bus
● Pull-high/ pull-low resistors for DI channels

32-channel, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (8 K word FIFO)


● 12-bit 330 kHz A/D converter
● AI channels: 32 single-ended/16 differential inputs, 8 K word FIFO buffer
● Up to 44 K samples/s sampling rate
● Programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
● Three different external trigger: post-trigger, pre-trigger, middle trigger
● Internal/external A/D trigger
● 16 digital input/16 digital output channels
● Two 12-bit DA channels, 2 MHz throughput per channel (max.)
● High speed data transfer rate up to 2.7 Mword/sec.
● DB-889D and DB-1825 accessories for expanding channels
● Half size board
● Universal PCI interface supports both 5 V and 3.3 V PCI bus
● Pull-high/ pull-low resistors for DI channels
