PCI Bus A/D, D/A Boards

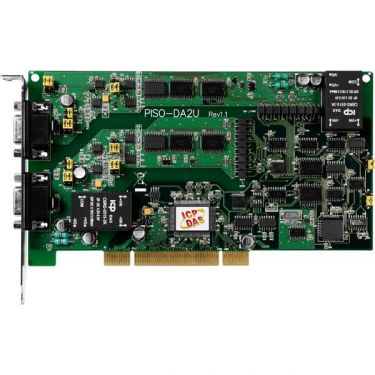

Universal PCI, 2-Channel Isolated Analog Output Board


● Supports both +5 V and +3.3 V PCI bus
● Supports +5 V PCI bus
● Two independent 12-bit analog output channels
● 3750 VDC bus and channels isolation protection
● 3000 VDC power isolation protection
● Software calibration
● Unipolar or bipolar output available from each converter
● Two pacer timer interrupt source
● Double-buffered D/A latch
● The calibration data is fully stored in EEPROM

Universal PCI, 14-bit 16-channel Analog Output Board


● 16 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Supports both +5 V and +3.3 V PCI bus
● Digital input port can be set to pull-high or pull-low
● Card ID function (v1.1 or above)

SOFTWARE FEATURES:

● High speed data acquisition system
● Process monitor and control
● Vibration analysis
● Digital pattern generator from digital I/O port

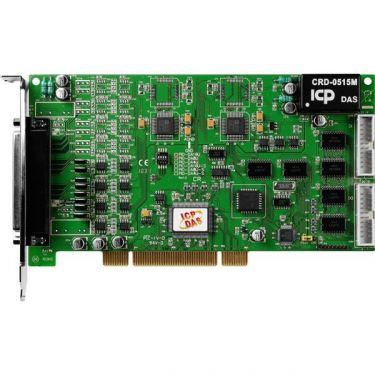

Universal PCI, 14-bit 8-channel Analog Output Board


● 8 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Supports both +5 V and +3.3 V PCI bus
● Digital input port can be set to pull-high or pull-low
● Card ID function (v1.1 or above)

SOFTWARE FEATURES:

● High speed data acquisition system
● Process monitor and control
● Vibration analysis
● Digital pattern generator from digital I/O port

Universal PCI, 14-bit 4-channel Analog Output Board


● 4 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Supports both +5 V and +3.3 V PCI bus
● Digital input port can be set to pull-high or pull-low
● Card ID function (v1.1 or above)

SOFTWARE FEATURES:

● High speed data acquisition system
● Process monitor and control
● Vibration analysis
● Digital pattern generator from digital I/O port

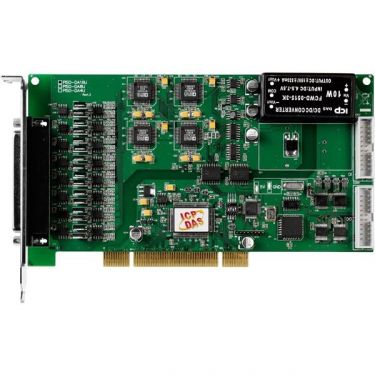

Universal PCI , 14-bit 16-channel Isolated Analog Output Board

● Supports +5 V PCI bus for PIO-DA4/DA8/DA16
● 16 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Built-in DC/DC converter with 3000 VDC isolation
● Supports both +5 V and +3.3 V PCI bus
● 2500 VDC bus-type and power isolation protection
● Digital input port can be set to pull-high or pull-low
● Card ID function

Universal PCI , 14-bit 8-channel Isolated Analog Output Board

● Supports +5 V PCI bus for PIO-DA4/DA8/DA16
● 8 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Built-in DC/DC converter with 3000 VDC isolation
● Supports both +5 V and +3.3 V PCI bus
● 2500 VDC bus-type and power isolation protection
● Digital input port can be set to pull-high or pull-low
● Card ID function

Universal PCI , 14-bit 4-channel Isolated Analog Output Board

● Supports +5 V PCI bus for PIO-DA4/DA8/DA16
● 4 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
● Built-in DC/DC converter with 3000 VDC isolation
● Supports both +5 V and +3.3 V PCI bus
● 2500 VDC bus-type and power isolation protection
● Digital input port can be set to pull-high or pull-low
● Card ID function
