2-Port Isolated Protection CAN Communication PC-104+ Module with 9-pin D-sub connector

● PCI104/PC104+ compliant
● 9-pin D-sub connector
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500 Vrms photo couple isolation on the CAN bus
● Built-in jumper to select 120 ohm terminal resistor
● 3KV galvanic isolation
● 1/2 independent CAN channels
● Direct memory mapping to the CAN controller
● Provide VB, VC++, Delphi, BC++ demos
● Driver support Windows 98/ME/NT/2K/XP/WinCE and Linux

1-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin F/M D-subconnector

● PCI104/PC104+ compliant
● 9-pin D-sub connector
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500 Vrms photo couple isolation on the CAN bus
● Built-in jumper to select 120 ohm terminal resister
● 3kV galvanic isolation
● 1/2 independent CAN channels
● Direct memory mapping to the CAN controller
● Provide VB, VC++, Delphi, BC++ demos
● Driver support Windows 98/ME/NT/2K/XP/WinCE and Linux

2-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin D-sub connector

● PCI104/PC104+ compliant
● 9-pin D-sub connector
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Built-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

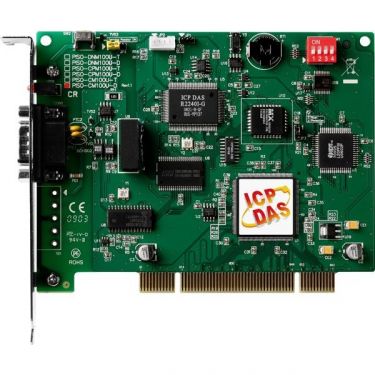

One Standalone Intelligent CAN Communication Board

● Microprocessor inside with 80186, 80MHz
● 82C250 CAN transceiver
● SJA1000T CAN controller
● Support both CAN 2.0A and CAN 2.0B
● Timestamp with at least ±1ms precision
● DIP switch to select board number
● Dual port RAM communication mechanism
● RTC (real time clock) inside

One Standalone Intelligent CAN Communication Board

● Microprocessor inside with 80186, 80MHz
● 82C250 CAN transceiver
● SJA1000T CAN controller
● Support both CAN 2.0A and CAN 2.0B
● Timestamp with at least ±1ms precision
● DIP switch to select board number
● Dual port RAM communication mechanism
● RTC (real time clock) inside

2-Port Isolated Protection CAN Communication Board with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection CAN Communication Board with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection CAN Communication PC-104+ Module with 9-pin D-sub connector

● PCI104/PC104+ compliant
● 9-pin D-sub connector
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Built-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

2-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin D-sub connector

● PCI104/PC104+ compliant
● 9-pin D-sub connector
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Built-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller
