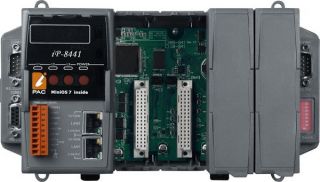

ICPDAS PAC iP-8441
Levertijd:
2~7 dagen
SKU
iP-8441
Standard iPAC-8000 with 4 I/O Slots
SOFTWARE FEATURES:
● MiniOS7 Embedded Operating System (DOS-like)
● Support VxComm Technique
● Redundant Ethernet Communication
● Xserver Development Template to Simplify TCP/IP Application
● Slave I/O Firmware Options (DCON or Modbus/TCP)
● Hardware Diagnostic Functions
● Load Files Via RS-232 or Ethernet
● SNMP slave library
HARDWARE FEATURES:
● 80186, 80 MHz CPU
● 64-bit Hardware Serial Number for Software Protection
● Dual Battery Backup SRAM (512 KB)
Support I/O Module Hot Swap
● Rich I/O Expansion Ability
● Dual Ethernet Ports
● Redundant Power Inputs
● DIN-Rail or Wall Mounting
● Operating Temperature: -25 °C ~ +75 °C
The ICPDAS 8000 Series PAC iP-8441 is the compact size PAC (Programmable Automation Controller). It supports various connectivity including Dual 10/100 Base-TX Ethernet ports, one RS-232/485 port, one RS-485 port and two RS-232 ports, and 4/8 slots for high performance Parallel-type I/O modules (High profile I-8K series) and Serial-type I/O modules (High profile I-87K series), etc.
The ICPDAS 8000 Series PAC iP-8441 is designed for industrial monitoring, measurement and controlling. It has redundant power inputs with 1 kV isolation from noise and surges, and a wide range of operating temperature (-25 °C ~ +75 °C). It can work in the harsh and rough environment.
Meer informatie
Art.nr.
iP-8441
Fabrikant
ICPDAS
Software
| OS | MiniOS7 (DOS-like embedded operating system) | |||||
| Program Download Interface | RS-232 (COM1) | |||||
| Programming Language | C language | |||||
| Compilers to Create.exe Files |
|
Systeem
| CPU | 80186 or compatible (16-bit and 80MHz) | ||
| SRAM | 768 KB | ||
| Flash | 512 KB (100,000 erase/write cycles) with Flash protection switch | ||
| Expansion Flash Memory | microSD socket (can support 1/2 GB microSD) | ||
| 64 MB NAND Flash Disk | N/A | ||
| Dual Battery Backup SRAM | 512 KB (for 5 years data rretention) | ||
| EEPROM |
|
||
| NVRAM | 31 bytes (battery backup, data valid up to 5 year) | ||
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year | ||
| 64-bit Hardware Serial Number | Yes | ||
| Watchdog Timers | Yes (0.8 second) | ||
| NET ID | 8-pin DIP switch to assign NET ID as 1 ~ 255 |
Communication Ports
| Ethernet |
|
||||
| COM0 | Internal communication with the high profile I-87K series modules in slots | ||||
| COM2 |
|
||||
| COM3 | RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated | ||||
| COM4 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
SMMI
| 5 | Digit LED Display |
| 3 | Programmable LED Indicators |
| 4 | Push Buttons |
| Buzzer | Yes |
I/O Expansion Slots
| Slot Number |
|
||
| Hot Swap | For High Profile I-87K Modules Only | ||
| Data Bus | 8/16 bits | ||
| Address Bus Range | 2 K for each slot |
Power
| Input Range | +10 ~ +30 VDC |
| Isolation | 1 kV |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity | 0.85 A, 5 V supply to CPU and backplane, 5.51 A, 5 V supply to I/O expansion slots, 30 W in total |
| Consumption | 6.7 W (0.28 A @ 24 VDC) |
Mechanical
| Dimensions (w x l x h) | 231 x 132 x 111mm |
| Installation | DIN-Rail or Wall Mounting |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH (non-condensing) |
