The WinCon-8000 is a leading edge embedded platform of ICP DAS with an Intel Strong ARM CPU running a Windows CE .NET operating system. When compared to the standard Window O.S., Windows CE.NET has some advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE .NET in the WinCon-8000 gives it the ability to run PC-based Control software such as Visual Basic .NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC …etc. The WinCon-8000 supports PLC-style technology of data acquisition and remote control. Its combined advantage gives you all of the best features of both traditional PLCs and Windows capable PCs. Furthermore, WinCon-8000 is a cost-effective choice as a replacement for a regular PC or PLC based control system.
According to user's application, you can choice the WinCon-8000 with display or without display to be part of a large and powerful control system with a price that meets a tiny budget.



Desc
per pagina

6 producten

  1. 2-axis Stepping/Servo Motor Control Card (Gray Cover)

    2-axis Stepping/Servo Motor Control Card

    ● Parallel I/O Module
    ● 2-axis independent, simultaneous stepping motor control/servo motor control (pulse input type)
    ● Maximum pulse rate: 1 Mpps
    ● Maximum step counts: 232 -1 steps
    ● DOS driver
    ● Embedded CPU
    ● Command type interface
    ● 2-axis linear, 2-axis circular interpolation
    ● Automatic trapezoidal acceleration/deceleration
    ● Output pulse modes: CW/CCW or pulse/direction

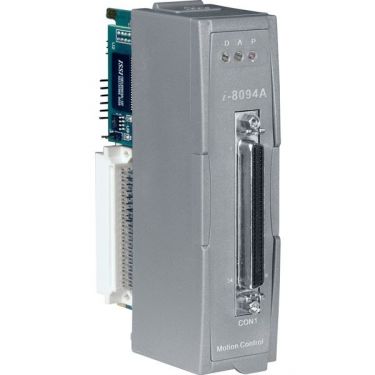

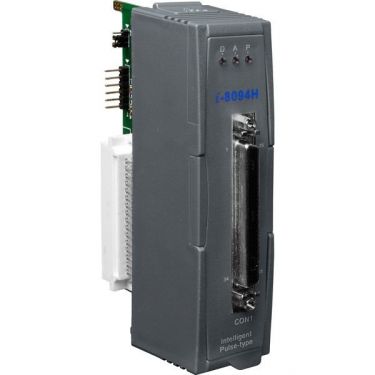

  2. High Speed 4-axis Motion Control Module with CPU inside

    High Speed 4-axis Motion Control Module with CPU inside

    ● Independent 4-axis motion control
    ● Support for hand wheel and jog functions
    ● 2/3-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4 Mpps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down

  3. High Speed 4-axis Motion Control Module with FRnet master & CPU inside

    High Speed 4-axis Motion Control Module with CPU inside

    ● Independent 4-axis motion control
    ● Support for hand wheel and jog functions
    ● 2/3-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4 Mpps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down


  4. High Speed 4-axis Motion Control Module with FRnet master

    High Speed 4-axis Motion Control Module

    ● Independent 4-axis motion control
    ● Support for hand wheel and jog functions
    ● 2/3-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4M pps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down

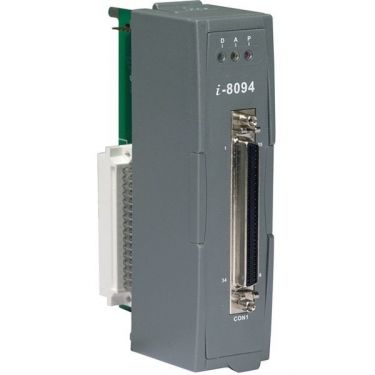

  5. High Speed 4-axis Motion Control Module

    High Speed 4-axis Motion Control Module

    ● Independent 4-axis motion control
    ● Support for hand wheel and jog functions
    ● 2/3-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4 Mpps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down

  6. High Speed 2-axis Motion Control Module

    High Speed 2-axis Motion Control Module

    ● Independent 2-axis motion control
    ● Support for hand wheel and jog functions
    ● 2-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and eceleration
    ● A maximum of 4 Mpps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down
