EtherWAN Ethernet Switch EX47000

Levertijd:
3~4 weken
SKU
EX47000

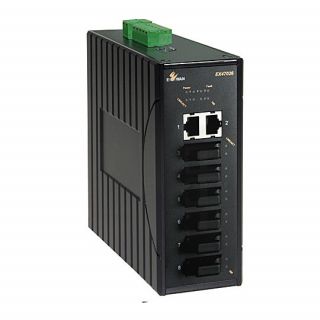

IEC61850-3/IEEE1613 Unmanaged Hardened 8-port 10/100BASE Ethernet Switch

● Provides flexibility of 4 to 8 10/100BASE-TX ports and 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power and Link Down failure by relay output
● Supports DIP switch configuration for link down alarm
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail or panel mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with IEC61850-3 and IEEE1613 Environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for Railway application

Brochure EN

EtherWAN’s EX47000 Series is a hardened unmanaged Fast Ethernet switching platform, designed for easy deployment in harsh environments.

The EX47000 Series is equipped with eight Fast Ethernet ports, or a combination of Fast Ethernet copper ports and two 100FX ports for long distance connectivity. Although unmanaged, the EX47000 is feature rich with full wire speed Fast Ethernet throughput, making the EX47000 Series a powerful network switch. With its hardened-grade specifications and IEC61850 & IEEE1613 certifications, the EX47000 Series is capable of operating under high EMI environments at the temperatures ranging from -40°C to 75°C, making it an ideal choice for harsh applications.

Meer informatie
Art.nr.
EX47000
Fabrikant
EtherWAN
Land van herkomst
Taiwan
Technology
Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX,
IEEE802.3x
Forward and Filtering Rate 14,880pps for 10Mbps
148,810pps for 100Mbps
Packet Buffer Memory 448K bits
Processing Type
Store-and-forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size 2048 MAC addresses
Interface
LED Indicators Per Unit: Power Status: Power 1, 2, 3 (Green), Fault (Red)
Per Port: 10/100TX, 100FX: Link/Activity (Green)10/100TX: 100 (Green)
Alarm Contact One relay output with current 1A @ 24VDC
Power
Input Input Voltage: 12VDC (DC Jack); 12 to 48VDC (TerminalBlock)
Power Consumption 6W Max. 12VDC @ 0.5A, 24VDC @ 0.25A, 48VDC @0.125A
Reverse Polarity Protection Present
Mechanical
Casing Aluminum Case
Dimensions (w x h x d) 60mm (W) x 125mm (D) x 145mm (H)
(2.36" (W) x 4.92" (D) x 5.7" (H))
Weight 1Kg (2.2lbs.)
Installation DIN-Rail, Panel Mounting
Environmental
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% (non-condensing)
Approvals
ISO Manufactured in an ISO9001 facility
Safety UL508
EMI FCC Part 15, Class A
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EMS

EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 8KV
Air: + / - 15KV
- EN61000-4-3 (Radiated FRI Standards)
35V/m, 80 to 3G; 80% AM
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV
D.C. Power Ports: + / - 4KV
A.C. Power Ports: + / - 4KV
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 2KV; Line-to-Line
D.C. Power Ports: + / - 4KV; Line-to-Earth
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10V @ 0.15 - 80MHz
D.C. Power Ports: 10V @ 0.15 - 80MHz
A.C. Power Ports: 10V @ 0.15 - 80MHz
Earth Ground Ports: 10V @ 0.15 - 80MHz
- EN61000-4-8 (Magnetic Field Standards)
1000A/m @ 50, 60Hz
- IEC 61000-4-10 (Oscillatory wave magnetic field test)
100kHz and 1MHz: 30A/m
- IEC 61000-4-16 (Power frequency immunity test) 50Hz: 300V
- IEC 61000-4-18 (oscillatory wave immunity test):
100 kHz, 2.5kV CM and 2.5kV DM
1MHz , 2.5kV CM and 2.5kV DM
- IEEE1613:
power frequency withstand voltage: 2KV, Insulation
resistance >550 MOhm
RJ45 Port 500V, Insulation resistance >550 MOhm
Impulse voltage: 5Kv, Insulation resistance >550 MOhm
IEC 60870-2-1: AC/DC power supply voltage variations
Environmental Test Compliance IEC60068-2-6 (Vibration Resistance)
5G @ 150Hz; Criterion 3 (Operation/Storage/Transport)
IEC60068-2-27 (Shock)
25G @ 11ms (Half-Sine Shock Pulse; Operation)
50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
FED STD 101C Method 5007.1 (Free fall w/ package)
-Tested with Cross Weight and Drop High standard table
