Industrial IoT Gateway Solution

Details

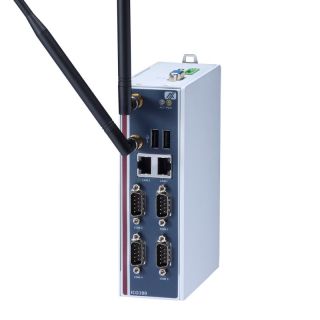

The ICO300-MI, an intelligent industrial Intel® Atom-based IoT (Internet of Things) gateway solution. With din-rail, fanless and rugged design, delivering high performance at competitive price.
The reliable ICO300-MI is a perfect embedded solution for IoT, industrial and embedded applications such as power plant automation, facility monitoring
systems, intelligent transportation systems and other harsh environment.
The application-ready machine to machine platform ICO300-MI supports Intel® IoT Gateway Solution. Customers could connect their widely distributed systems via wireless
network such as 3G/GPRS. It also avails users to manage a variety of systems effortlessly with a wide range of industrial interfaces for both new and existing installation into the Internet of Things environment. It simplifies the development process and deployment of IoT gateways and achieves accelerated business transformation.

SPECIFICATIES

Meer informatie

Art.nr.

ICO300-MI

Fabrikant

Axiomtek

Standard Color

White

Construction

Extruded aluminum and heavy-duty steel, IP40

CPU

Intel® Atom™ Processor E3815 (1.46GHz)

System Memory

DDR3L-1066 MHz SO-DIMM up to 4 GB (E3815)

BIOS

AMI UEFI BIOS

System I/O Outlet

Serial Port	4 x RS-232/422/485 (COM 1~4) Interface select by BIOS Supports Auto Flow Control in RS-485 mode
USB	2 x USB 2.0
RTC	Battery onboard
Storage	1 x 2.5" SATA SSD/HDD (default) or 1 x mSATA
LAN	2 x10/100/1000 Ethernet port
VGA	1 x DB15 connector
Power Input	1 x DC power input with terminal block
Wireless	1 x Full size Mini Card slot supports 3G/GPRS and Wi-Fi 1 x SIM card socket 2 x Antenna
