Serial to Ethernet Device Server
The DS/PDS series device server (Serial-to-Ethernet gateway) adds Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and eliminates the cable length limitation of legacy serial communication. By using the VxComm Driver/Utility, the built-in COM port of the device servers can be virtualized as a standard PC COM port in Windows. Therefore, users can directly and transparently access or monitor serial devices via the Internet/Ethernet.
In the past decades, a great number of serial devices such as PLCs, bar code readers, RFID readers, meters and motion controllers, etc., have been widely used in various applications. As advances in communication technologies continue to drive the improvement of data accessibility and remote operation ability, many industries feel the urge to upgrade their legacy serial communications to Ethernet network connections. ICP DAS device server products are the best choice for implementing this scenario in a robust, reliable and cost-effective way.

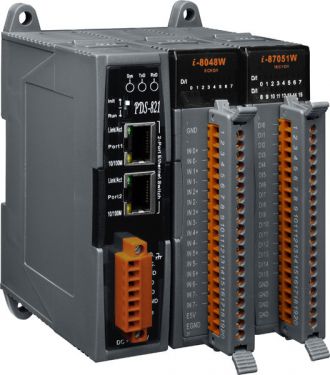

ICPDAS PDS-821Programmable Device Server with 2 I/O Expansion Slots
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" extends PC COM ports
● VxComm Driver for Windows NT 4.0, 2000/XP/2003 and Vista32
● Programmable Internet/Ethernet Controller
● Watchdog Timer suitable for use in harsh environments
● 2-port 10/100 Base-TX Ethernet Switch (Auto-negotiating, auto MDI/MDI-X, LED indicator)
● Power Reverse Polarity Protection
● 3-wire RS-232 console Port
● RS-232 TxD/RxD LED Indicators
● System Status LED Indicator
● ESD Protection and Frame Ground Design
● RoHS Compliant with no Halogen
● Built-in High performance MiniOS7 from ICP DAS
● Low power consumption
● Made from fire retardant materials (UL94-V0 Level)

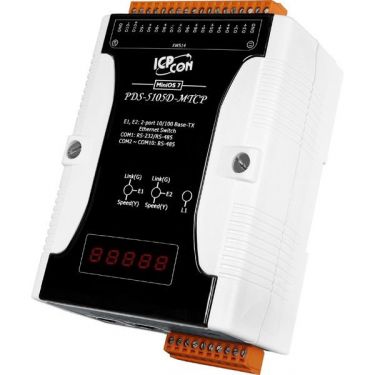

PDS-5105D-MTCPProgrammable Device Server with 10 RS-485 Ports, 2-Port Switch and LED Display (RoHS)
● Integrates any RS-232/485 serial device in an Ethernet Network
● Virtual COM extends the PC COM ports
● Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7
● Powerful programmable device server
● Watchdog timer suitable for use in harsh environments
● Power reverse polarity protection
● Serial port +/-2 kV ESD protection circuit
● Self-tuner ASIC controller on the RS-485 port
● RoHS compliant & no halogen
● Built-in high performance MiniOS7 from ICP DAS
● 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass
● ODM service is available
● Low power consumption
● Made from fire-retardant materials (UL94-V0 level)
ICPDAS tDS-734(i)Tiny Device Server with PoE and 1 RS-232/422/485 Port
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers
ICPDAS tDS-724(i)Tiny Device Server with PoE and 1 RS-232/422/485 Port
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers

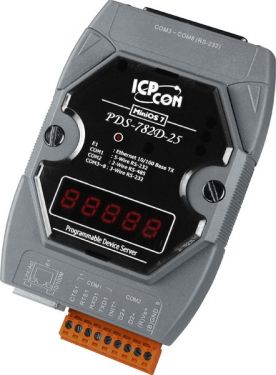

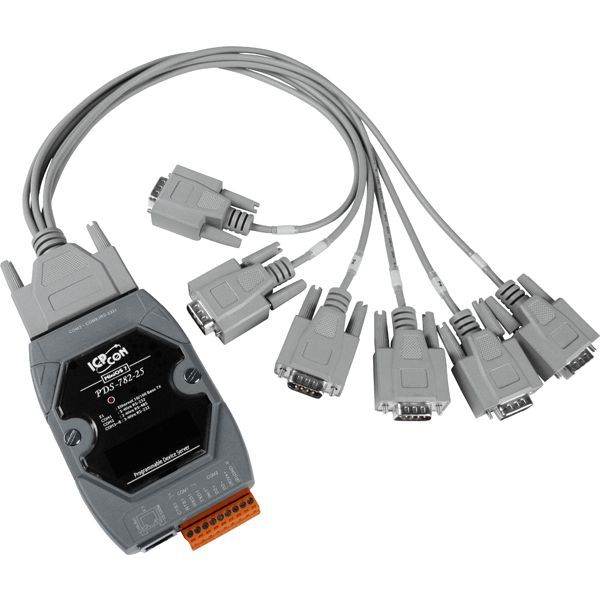

ICPDAS PDS-782D-25/D6Programmable Device Server with 7 RS-232 ports, 1 RS-485 port and an LED Display
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
● Powerful Programmable Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC Controller on the RS-485 Port
● 5-digit LED Display
● Built-in High Performance MiniOS7
● 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
● ODM Service Is Available
● Low power consumption
● Palm-Sized with multiple Serial Ports
● Made from fire retardant materials (UL94-V0 Level)
● Male DB-9 Connector
ICPDAS PDSM-732DProgrammable Device Server with 2 RS-232 ports and 1 RS-485 port with LED Display and Metal Case
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
● Powerful Programmable Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC Controller on the RS-485 Port
● 5-digit LED Display
● Built-in High Performance MiniOS7
● 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
● ODM Service Is Available
● Low power consumption
● Palm-Sized with multiple Serial Ports
● Made from fire retardant materials (UL94-V0 Level)
● Supports D/I, Latched D/I and Counter Functions
ICPDAS PPDS-720-MTCPProgrammable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 1 RS-485 port
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
● Powerful Programmable Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC Controller on the RS-485 Port
● Built-in High Performance MiniOS7
● 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
● ODM Service Is Available
● Low power consumption
● Palm-Sized with multiple Serial Ports
● Made from fire retardant materials (UL94-V0 Level)
● Supports Modbus TCP to RTU/ASCII Gateway
● Supports PoE (IEEE 802.3af, Class 1)

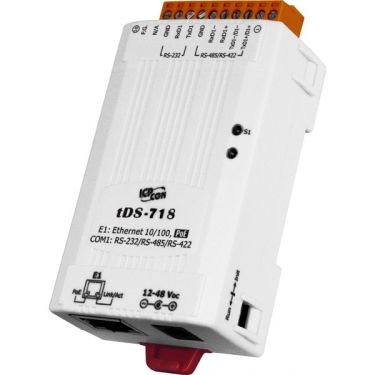

ICPDAS tDS-718(i)Tiny Device Server with PoE and 1 RS-232/422/485 Port
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers

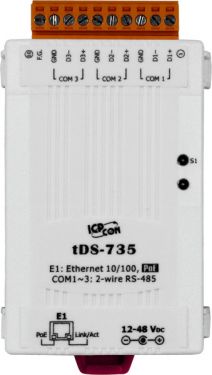

ICPDAS tDS-735(i)Tiny Device Server with PoE and 3 RS-485 Ports
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers

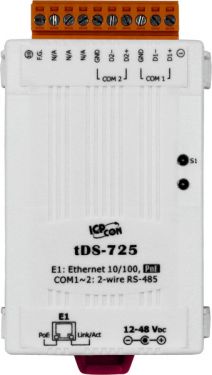

ICPDAS tDS-725(i)Tiny Device Server with PoE and 2 RS-485 Ports
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers
ICPDAS tDS-715(i)Tiny Device Server with PoE and 1 RS-422/485 Port
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers

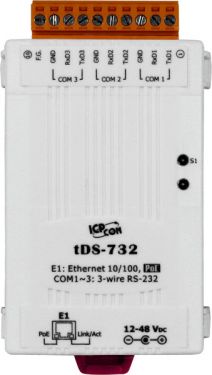

ICPDAS tDS-732(i)Tiny Device Server with PoE and 3 RS-232 Ports
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers

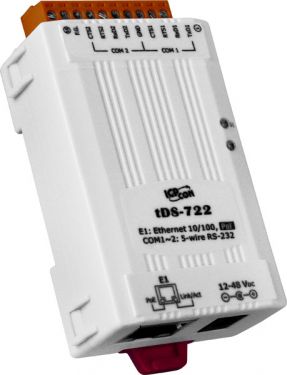

ICPDAS tDS-722(i)Tiny Device Server with PoE and 2 RS-232 Ports
● Incorporates any RS-232/422/485 serial device in Ethernet
● Includes a VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/10
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers
ICPDAS tDS-712(i)Tiny Device Server with PoE and 1 RS-232 Port
● Incorporates any RS-232/422/485 serial device in Ethernet
● VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Male DB-9 or Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective device servers
ICPDAS PDS-220FCS-60Programmable Device Server with 1 RS-232, 1 RS-422/485 and 1 Single-mode SC Fiber Port
● Adds optical fiber connectivity to serial devices
● "Virtual COM" extends COM ports
● Virtual COM for 32-bit and 64-bit Windows XP/2003/Vista/7
● Powerful programmable device server
● Watchdog timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC controller on the RS-485 port
● RoHS compliant with no Halogen
● Built-in high performance MiniOS7 from ICP DAS
● 100 Base-FX fiber port (SC/ST connectors)
● ODM service Is available
● Low power consumption
● Made from fire retardant materials (UL94-V0 level)
ICPDAS PDS-220FCSProgrammable Device Server with 1 RS-232, 1 RS-422/485 and 1 Single-mode SC Fiber Port
● Adds optical fiber connectivity to serial devices
● "Virtual COM" extends COM ports
● Virtual COM for 32-bit and 64-bit Windows XP/2003/Vista/7
● Powerful programmable device server
● Watchdog timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC controller on the RS-485 port
● Built-in high performance MiniOS7
● 100 Base-FX fiber port (SC/ST connectors)
● ODM service Is available
● Low power consumption
● Made from fire retardant materials (UL94-V0 level)
ICPDAS PDS-220FCProgrammable Device Server with 1 RS-232, 1 RS-422/485 and 1 Multi-mode SC Fiber Ports
● Adds optical fiber connectivity to serial devices
● "Virtual COM" extends COM ports
● Virtual COM for 32-bit and 64-bit Windows XP/2003/Vista/7
● Powerful programmable device server
● Watchdog timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC controller on the RS-485 port
● RoHS compliant with no Halogen
● Built-in high performance MiniOS7 from ICP DAS
● 100 Base-FX fiber port (SC/ST connectors)
● ODM service Is available
● Low power consumption
● Made from fire retardant materials (UL94-V0 level)
ICPDAS PDS-220FTProgrammable Device Server with 1 RS-232, 1 RS-422/485 and 1 Multi-mode ST Fiber Ports
● Adds optical fiber connectivity to serial devices
● "Virtual COM" extends COM ports
● Virtual COM for 32-bit and 64-bit Windows XP/2003/Vista/7
● Powerful programmable device server
● Watchdog timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC controller on the RS-485 port
● RoHS compliant with no Halogen
● Built-in high performance MiniOS7 from ICP DAS
● 100 Base-FX fiber port (SC/ST connectors)
● ODM service Is available
● Low power consumption
● Made from fire retardant materials (UL94-V0 level)
ICPDAS I-8142iW2-Port Isolated RS-422/485 Module
● High-profile Module
● 2500 Vrms Isolation
● Serial Port with ±4 kV ESD Protection
● Internal 128-byte Hardware FIFO for each Port
● Baud Rate of up to 115200 bps
● LED Indicators for TxD, RxD and Power Status
● Built-in Self-Tuner or Auto-Direction Control
● Low power consumption
● Made from fire retardant materials (UL94-V0 Level)
ICPDAS I-8112iW2-Port Isolated RS-232 Module
● High-profile Module
● 2500 Vrms Isolation
● Serial Port with ±4 kV ESD Protection
● Internal 128-byte Hardware FIFO for each Port
● Baud Rate of up to 115200 bps
● LED Indicators for TxD, RxD and Power Status
● Low power consumption
● Made from fire retardant materials (UL94-V0 Level)
